<%@LANGUAGE="JAVASCRIPT" CODEPAGE="936"%> Tuner: Antel Electronics Co., Ltd.



SYSTEM VHFL VHFH UHF PIF SIF POWER GAIN
BG 49.75MHz-128.25MHz 136.25MHz-360.25MHz 368.25MHz-823.25MHz 38.0MHz 31.5MHz 32dB MIN

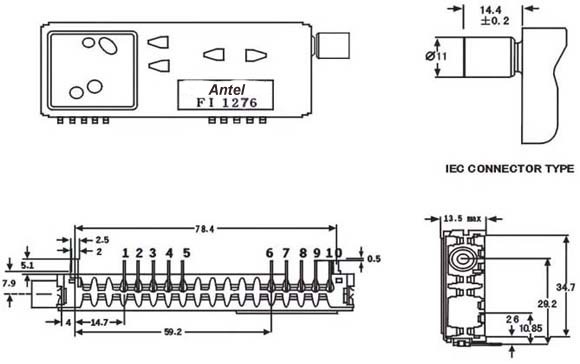

Pin No. 1 2 3 4 5 6 7 8 9 10
Function TU VCC SCL SDA AS/END NC CVBS VIDEO VCC AUDIO
Voltage 33V 5V - - - - - - 5V -
