| SYSTEM | VHFL | VHFH | UHF | PIF | SIF | POWER GAIN |
| DK/BG | 49.75MHz-128.25MHz | 136.25MHz-360.25MHz | 368.25MHz-823.25MHz | 38MHz/38.9MHz | 31.5MHz /32.4MHz | 30dB MIN |

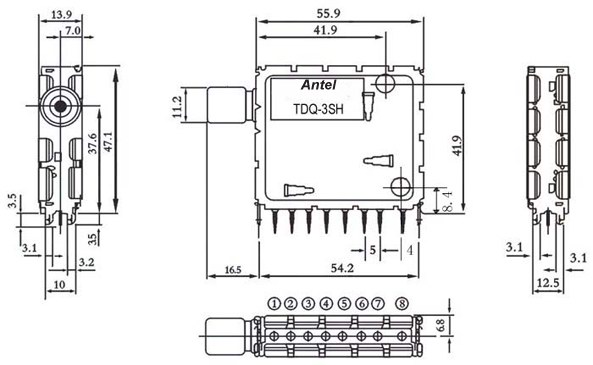

| Pin No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 11 | ||
| Function | BU | VT | BH | AGC | BL | AFC | BM | IF | IF | ||
| Voltage | 0V/12V | 0V-30V | 0V/12V | 7.5V | 0V/12V | 6.5V | 12V | - | - |
