<%@LANGUAGE="JAVASCRIPT" CODEPAGE="936"%> Tuner: Antel Electronics Co., Ltd.



SYSTEM VHFL VHFH UHF PIF SIF POWER GAIN
DK/BG 46MHz-170MHz 170MHz-470MHz 470MHz-870MHz 38MHz/38.9MHz 31.5MHz /32.4MHz 30dB MIN

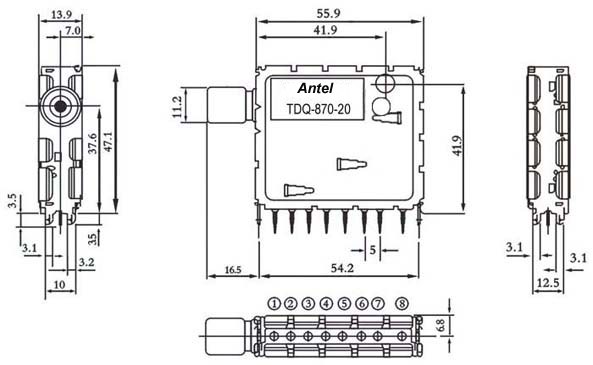

Pin No. 1 2 3 4 5 6 7 8     11
Function BU VT BH AGC BL AFC BM IF     IF
Voltage 0V/12V 0V-30V 0V/12V 7.5V 0V/12V 6.5V 12V -     -
