<%@LANGUAGE="JAVASCRIPT" CODEPAGE="936"%> Tuner: Antel Electronics Co., Ltd.



SYSTEM VHFL VHFH UHF PIF SIF POWER GAIN
U.S.A.181Channel 2-B C-W+11 W+12-69 45.75MHz 41.25MHz 30dB MIN

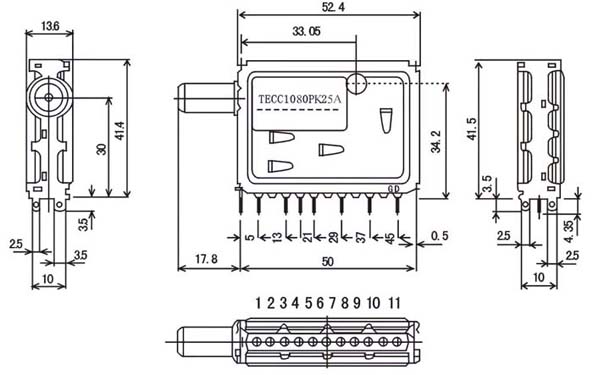

Pin No. 1 2 3 4 5 6 7 8 9 10 11
Function AGC NO CONN ENABLE CLOCK DATA BM BP NO COON BT NO CONN IF OUT
Voltage 7V - - - - 9V 5V - 33V - -
