| SYSTEM | VHFL | VHFH | UHF | PIF | SIF | POWER GAIN |
| CCIR | 46MHz-170MHz | 170MHz-460MHz | 460MHz-870MHz | 38MHz/38.9MHz | 31.5/32.4MHz | 30dB MIN |

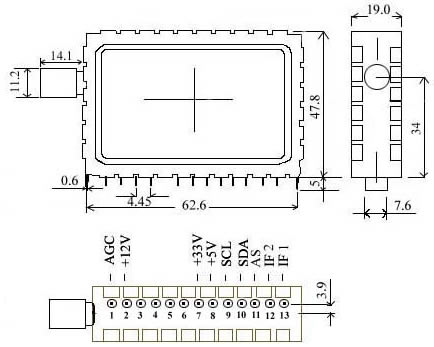

| Pin No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 |
| Function | AGC | +12V | NC | NC | NC | NC | +33V | +5V | SCL | SDA | AS | IF2 | IF1 |
| Voltage | 7.5V | 12V | - | - | - | - | 33V | 5V | - | - | - | - | - |
