| Code: | GZS10-2-104 |  |

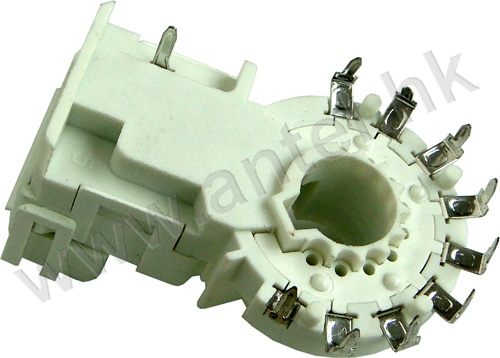

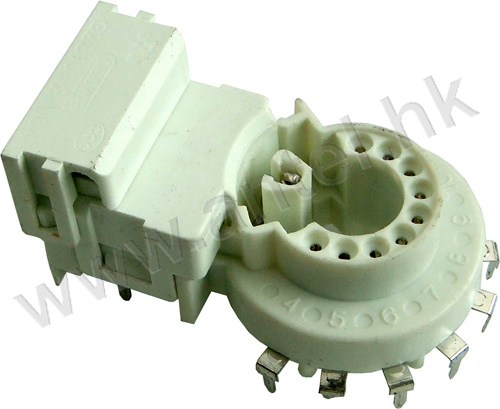

| Name: | CRT socket, 9+1pin |
 |
Specification
| Total insert force | ≤90N | Dielectric strength |
Between No.1 pin and adjacent pins(with key base):20kVDC. Between pin without spark-gap and adjacent pins(except ground pin):3kVDC. Between other adjacent pins(except ground pin):1.2kVDC
|
| Total withdrawal force | 27～80N | ||
| Individual separating force | ≥0.85N | ||
| Contact resistance | ≤0.02ohm | ||
| Insulation resistance | ≥100000Mohm | ||
| Initial discharge voltage | See table |
Table of Spark-gap position and initial discharge voltage
| Code | A | B | C | D | E | F | G |
| I.D.V of No.1 pin (focus)kVdc | 11～14 | 12～15 | 13～16 | 14～17 | 15～18 | 16～19 | 17～20 |
| Code | I.D.V kVdc | ||||||||
| Pin No. | |||||||||
| 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
| B | G.N.D | 1.2～2.3 | |||||||
| E | Without Pin | G.N.D | 1.2～2.3 | ||||||
| N | Without Pin | 1.2～2.3 | G.N.D | 1.2～2.3 | |||||
| Q | Without Pin | 1.2～2.3 | Without Pin G.N.D | ||||||
| R | 1.2～2.3 | Without Pin G.N.D | |||||||
