| Code: | FPS-150ABL MKII |  |

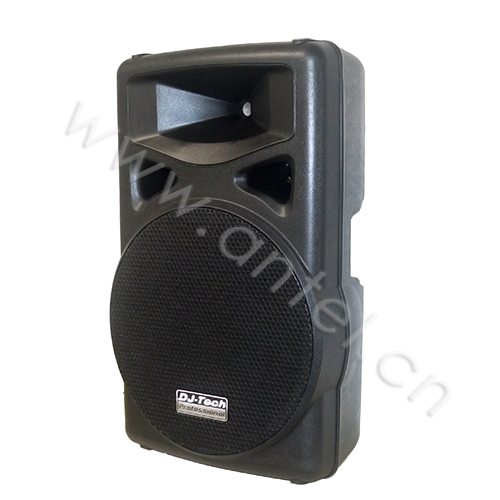

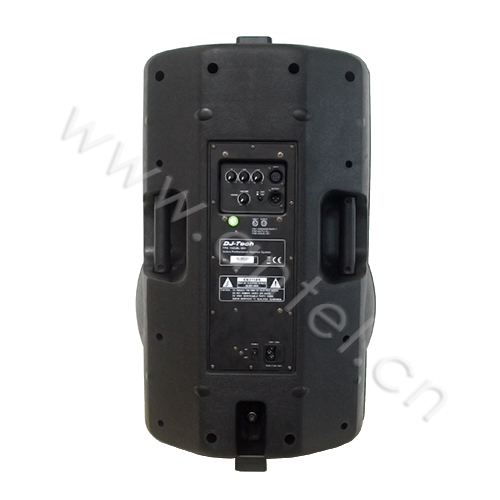

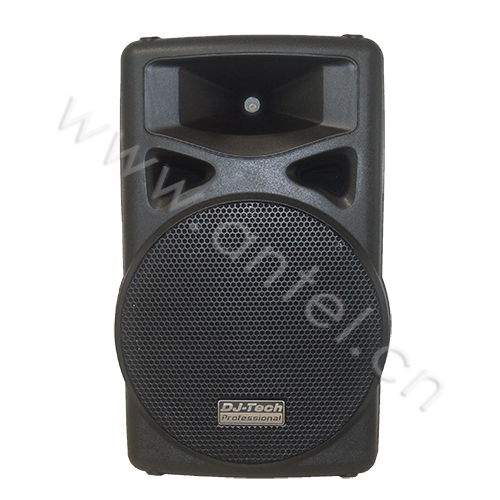

| Name: | 15" active speaker, output 200W/8Ω; 1*1.35" tweeter+1*15" woofer |
 |
● 2 ways active double amplifier system
● Individual amplification powers for high frequency and low frequency
● 1*1.35" tweeter + 1*15" woofer with Max 200W output power
● Optimize 24dB/oct Linkwitz-Riley crossover
● Sound protection for the impact sound and direct current caused by the power
● High quality microphone front amplifier can be connected directly
● Feather type direct heat sink improves the stability of entire set and heat exhaustion
● Three phase ”Music” equalization
| Specifications | |
| Model | FPS-150ABL MKII |
| Speaker unit | 1.35" tweeter+15" woofer 8Ω |
| Input sensitivity | 600mV line input |
| 10mV MIC input | |
| S/N ratio | >100dB |
| Residual noise | <70dB |
| Power supply and fuse | AC220 50Hz, T10A |
| Power output | 200W/8Ω |
| Freq. response range | Electronic: 40Hz~18KHz |
| Acoustic: 70Hz~18KHz | |
| SPL | 98dB |
| Input impedance | 10kΩ (Unbalanced) |
| 20kΩ (Balanced) | |
| Maximal input level | +18dBu |
| Crossover point | 5KHz |
| Distortion degree | <0.01% |
| Slew rate | 40V/us |
| Indicators | LED red power light |
| Weight | 18kg |
| Dimensions (WxDxH) | 400*300*685mm |
