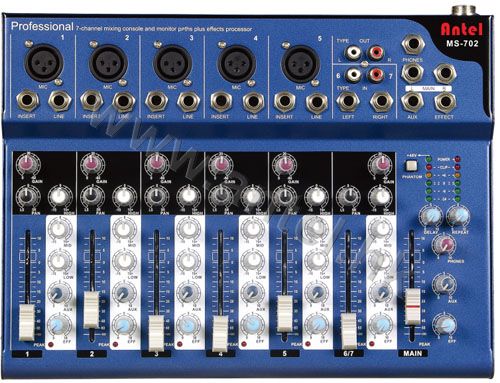

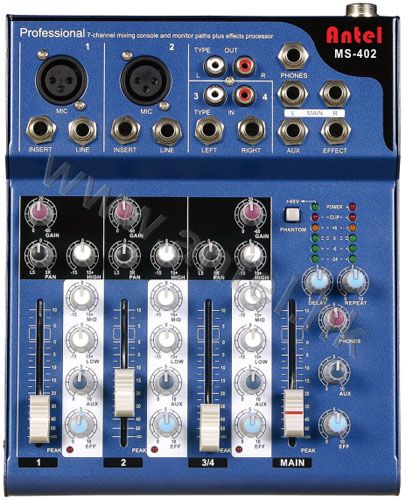

| Code: | MS-402 MS-702 |  |
| Name: | Audio mixer MS series |
 |
Features:
● 4/7 channels mixing console with two stereo channels and a separate stereo tape channel
● XLR MIC connectors on all mono channels
● Separate input JACK controls for Mix and Line inputs on all mono channels
● Low-noise, discrete MIC preamplifiers on all microphone inputs
● Dedicated inserts on all mono channels
● Balanced 1/4” stereo jacks and balance controls on all stereo channels
● Separate stereo tape channel with 1/4” and RCA jacks
● Stereo output for recording applications
● English musical active 3-band EQ on all seven channels
● Insert option for extemal effects devices
● AUX send and EFF send controls in the main section for optimal level adjustment
● Headphones output with dedicated volime control
● Extremely rugged construction ensures long life even under the most demanding conditions
Specifications:
| Model | MS-402 | MS-702 |
| Channel MIC/line | 4CH | 7CH |
| THD | ≤0.05% | ≤0.05% |
| Frequency Response | 20Hz-20kHz±3dB | 20Hz-20kHz±3dB |
| S/N Ratio | ≥97 dB | ≥ 97dB |
| Max Output | 4V Max | 4V Max |
| Input Sensitivity | Mic-60dB | Mic-60dB |
| Line-40dB | Line-40dB | |
| Aux-40dB Tape-40dB | Aux-40dB Tape-40dB | |
| Parametric EQ | Hi±15dB/12kHz | Hi±15dB/12kHz |
| Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | |
| Low±15dB/80Hz | Low±15dB/80Hz | |
| Phantom Power | +48V | +48V |
| Effector | Echo | Echo |
| Power Supply | AC 220V 50Hz | AC 220V 50Hz |
