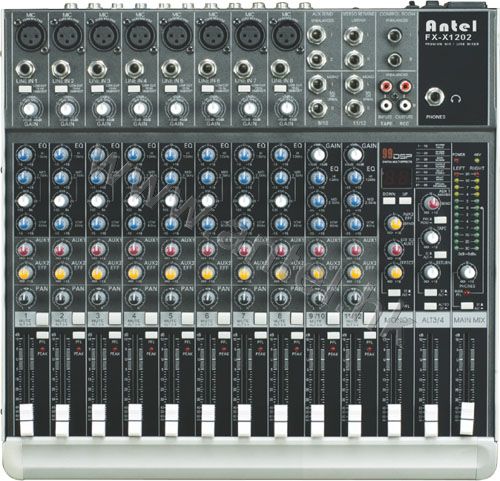

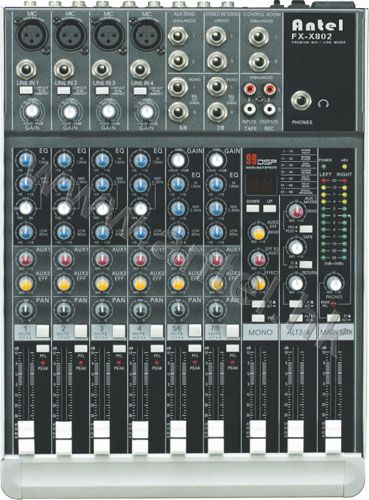

| Code: | FX-X802 FX-X1202 |  |
| Name: | Audio mixer FX series |
 |
Features:
● 8/12 channels (4/8 mono MIC/Line in,2 stereo Line in)
● Individual 48V phantom power switches on all MIC inputs
● ALT 3/4 stereo bus for added versatility
● 4-band Perkins EQ on MIC/Line channels; 3-band Perkins EQ on stereo line channels
● 24Bit 99 DSP digital display effector
● Record and headphone monitor output
● Dual bands 12 digits LED level display
● PAN,MUTE,EFF and PFL solo on each channel
● 18dB/OCT,75Hz low cut filter on MIC input channels
● Distortion under 0.0007% (20Hz-20kHz)
● New multi-voltage power supply for worldwide use
● 2 AUX sends,1 stereo AUX return
Specifications:
| Model | FX-X802 | FX-X1202 |
| Channel MIC/line | 8CH | 12CH |
| THD | ≤0.0007% | ≤0.0007% |
| Frequency Response | 20Hz-20kHz±3dB | 20Hz-20kHz±4dB |
| S/N Ratio | ≥115dB | ≥90dB |
| Max Output | 4V Max | 4V Max |
| Input Sensitivity | Mic-30dB | Mic-30dB |
| Line-21dB | Line-21dB | |
| Aux-22dB Tape-22dB | Aux-22dB Tape-22dB | |
| Parametric EQ | Hi±15dB/12kHz | Hi±15dB/12kHz |
| Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | |
| Low±15dB/80Hz | Low±15dB/80Hz | |
| Phantom Power | +48V | +48V |
| Effector | 24 Bit 99 DSP | 24 Bit 99 DSP |
| Power Supply | AC 220V 50Hz | AC 220V 50Hz |
