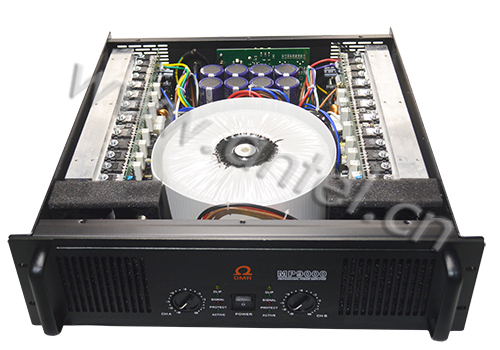

OMR new MP series amplifiers are high performance and high efficiency's top quality amplifiers. They adopt the orignal ON transistor that make the sound quality reach higher levels. In order to get good cooling effect and highest work efficiency, the exceptionally servo cooling system was installed which is constantly adjusted the fan speed regardless of output level. The amplifiers have their comprehensive protect functions including belows:
1. Power ON/OFF transient protection prevents the surge assault.
2. Thermal cut off protection, the amplifier will cut off the link with speakers when temperature is higher than 95℃.
3. Short circuit current limiting protection.
4. The muting circuit prevents switching noise by turning the amplifier on or off.
5. DC protection at speaker output, the amplifier will cut off the link with speakers when the amplifier is unusual.
6. Limited, providing 30dB of compression without distortion, the amplifier will not clip.
Specifications: | ||||
Model | MP6000 | MP7000 | MP8000 | MP9000 |
Output 8Ω 1KHz 0.1% THD stereo mode | 2x550W | 2x700W | 2x1500W | 2x1800W |
Output 4Ω 1KHz 0.1% THD stereo mode | 2x800W | 2x1000W | 2x2450W | 2x2700W |
Output 2Ω 1KHz 0.1% THD stereo mode | 2x1200W | 2x1500W | 2x3670W | 2x3960W |
Output 8Ω 1KHz 0.1% THD bridged mode | 1600W | 2000W | 4900W | 5400W |
Output 4Ω 1KHz 0.1% THD bridged mode | 2400W | 3000W | 7340W | 7920W |
Signal/noise | 105dB | 125dB | ||
Slew rate | 60v/μs | 80v/μs | ||
Damping factor | 450:1 | 500:1 | 680:1 | |
Fuse | T10A | T15A | T25A | |
Power supply | 220V 50/60Hz | |||
Frequency response @1 watt into 8Ω | ±0.1dB, 20Hz~20kHz | |||
THD+N | ≤0.01% @8Ω 1kHz | |||
IMD | ≤0.01% @8Ω at rate output | |||
Input impedance | 20kΩ Balanced or 10kΩ Unbalanced | 30kΩ Balanced or15kΩ Unbalanced | ||
Crosstalk at rated output 8Ω 1kHz | ≤-70dB | |||
Imput CMRR | ≤-75dB | |||
Indicators | Signal, Protect, Clip, Limited | |||
Net weight | 25kgs | 32kgs | 38kgs | 42kgs |
Dimensions:(mm) | 483*523*102 | 483*540*139 | 483*520*143 |
