| Code: | CMC-2000 CMC-2200 CMC-3000 CMC-5000 |  |

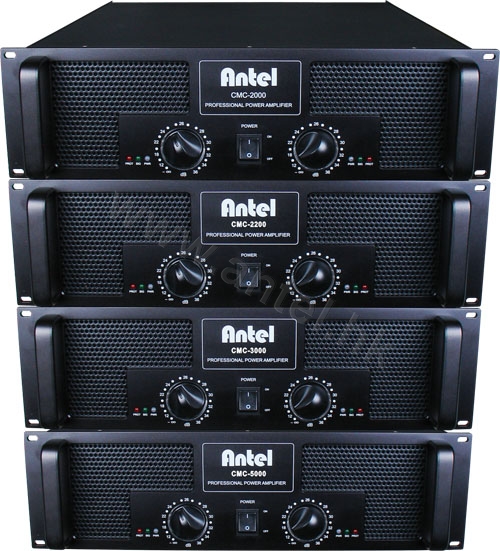

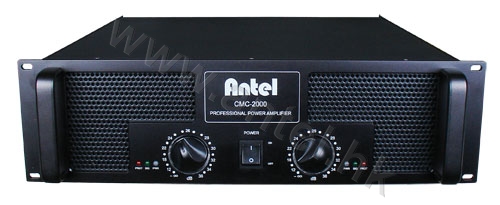

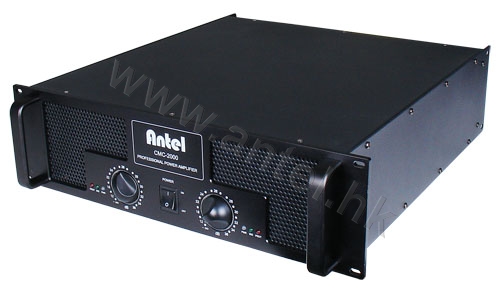

| Name: | professional amplifier CMC series |
 |
Features:
|
● Graceful tone & performance by use of Toshiba transistor
● Latest appearance, exquisite workmanship and reliable quality
● Higher class amplifier with H circuit for 1000W and AB circuit below 600W
● Perfect circuit protections such as over heat, over load, short-cut protection, anti-shock and DC output protection
● Limiter offers maximum output and protects speaker effectively
● Soft starting prevents surge shock
● Turn on delaying and turn off soundless

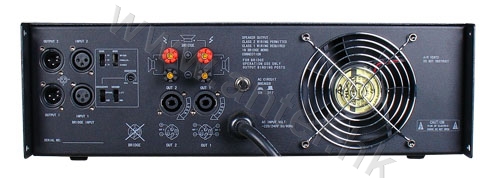

● Original Neutrik XLR and SPEAKON connectors |
Specifications:
| Model | CMC-2000 | CMC-2200 | CMC-3000 | CMC-5000 | |
| Power output (W) 1KHz,0.5%THD+N |
Stereo 8Ω | 300W | 300W | 600W | 1000W |
| Stereo 4Ω | 500W | 500W | 1000W | 1800W | |
| Bridged Mono 8Ω | 1000W | 1200W | 2400W | 3500W | |
| Frequency response(1W@8Ω) | 15Hz-25kHz +0/-1dB | ||||
| THD+N(Continuous power, 8Ω/1kHz) | ≤0.03% | ||||
| S/N rate (20Hz-20kHz full load) | ≥100dB | ||||
| Slew rate | 40V/us | ||||
| Damping factor | ≥400:1 | ||||
| Cross talk | ≥80dB | ||||
| Input impedance | 20KΩ(Balance) /10KΩ(Unbalance) | ||||
| Input sensitivity | 0.7V/1.0V/1.4V | ||||
| CMRR | ≥68dB | ||||
| Voltage gain(@1.44V/1V/0.775V) | 37X/59X/72X | 37X/59X/72X | 50X/70X/100X | 64X/90X/128X | |
| Input compression ratio | 18:01 | ||||
| Dimension(WxDxH) | 483(19")mmx500mmx133(3U)mm | ||||
| Weight | 21kg | 27kg | 26kg | 33.5kg | |
