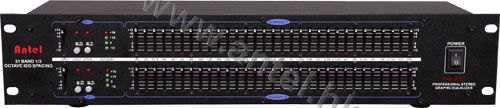

FEATURES

● 2 channels, double rack space

● Two 31-band, 1/3 octave constant Q frequency bands

● Balanced/unbalanced (XLR and 1/4'' TRS) input/output connectors

● Constant Q bandwidth from each filter with 3% center frequency accuracy

● Switchable boost/cut ranges of ±6 or ±12dB

● Parallel filter design for minimal phase distortion

● Ultra low-noise circuitry

● 4-segment LED ladders for monitoring output levels

● Variable input level control ±12dB

● Equalizer ON/OFF bypass switch with LED status

● Dynamic range greater than 108dB

● Internal shielded transformer

● Compact and durable all-steel chassis design

 SPECIFICATIONS

● Frequency Bands: 2*31, 1/3 octave, ISO spacing

● Slider Travel: 20mm (Center Detent)

● Input Impedance: Balanced 40kΩ, unbalanced 20kΩ

● Input Max Level: 28dBu

● Output Max Level: 21dBu

● Output Impedance: Balanced 100Ω, unbalanced 50Ω

● Frequency Response: 10Hz~50k Hz, 0.5/-1 dB

● Bandwidth: 20Hz~20k Hz, 0.5/-1 dB

● S/N Ratio: >95dB

● Dynamic Range: >108dB

● THD: <0.003% (1k Hz)

● Interchannel Crosstalk:<-90dB, 20Hz~20k Hz

● Power Supply: AC220V 50Hz
