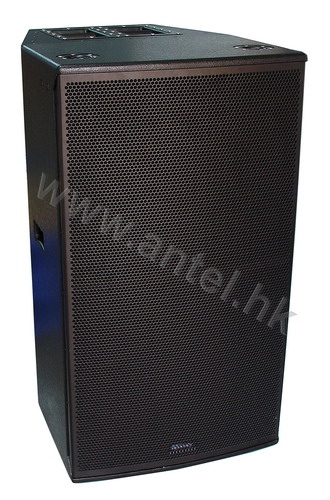

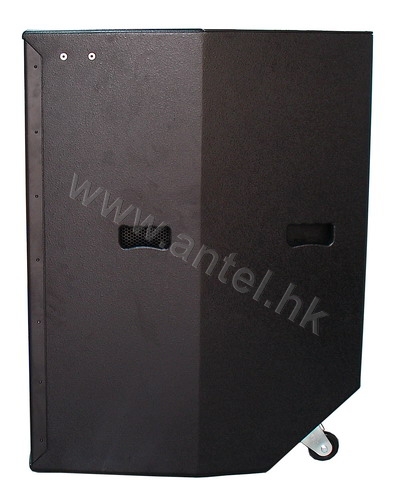

| SH1835 |
|
| 1*15" Three-Way Full Range Speaker |
| |
|
|
| Applications |
|
| ★ |
Main speaker for auditorium,conference hall,theate,stadium,multipurpose. |
| ★ |
Main in club and disco,places of worship. |
| ★ |
Mid/small scale portable event,shows,etc. |
| |
|
|
| Specifications |
|
| |
Frequency response |
80Hz-16KHz (±3dB) |
| |
|
60Hz-18KHz (-10dB) |
| |
Sensitivity (1W/1m) |
HF:110dB MF:108dB LF:108dB |
| |
Nominal impedance |
8Ω |
| |
Power rated (AES) |
HF:75W MF:200W LF:500W |
| |
Dispersion (HxV) |
60°*40° rotatable |
| |
Crossover |
1.5KHz/350Hz |
| |
HF |
Tianium diaphragm neodymium magnet |
| |
|
compression driver/75mm voice coil/75W |
| |
LF |
15"/100mm voice coil/500W |
| |
SPL |
HF:129dB continuous,135dB peak |
| |
|
MF:131dB continuous,137dB peak |
| |
|
LF:35dB contiuous,141dB peak |
| |

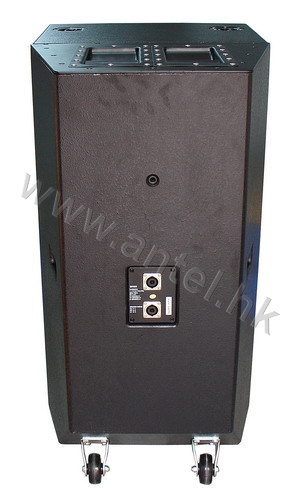

Connector |
NEUTRIK NL8MP*2 HF:1+1-,MF:2+2-, LF:3+3- |
| |
Enclosure |
Horn Loaded |
| |
Fittings |
3*Mounting ring |
| |
Dimension (w*D*H) |
557*780*1007mm |
| |
Weight |
72kg |
