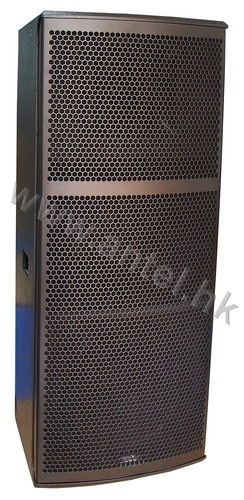

| SS315 |
|
| 1*15" Three-Way Full Range Speaker |
| |
|
|
| Applications |
|
| ★ |
Main in mid/small portable performance and events. |
| ★ |
Fill system for stadium. |
|
| ★ |
Conference room,multipurpose Hall. |
| ★ |
Auxiliary in club and disco,etc. |
| |
|
|
| Specifications |
|
| |
Frequency response |
60Hz-16KHz (±3dB) |
| |
|
45Hz-20KHz (-10dB) |
| |
Sensitivity (1W/1m) |
FH & MF:99dB ,LF:96dB |
| |
Nominal impedance |
8Ω |
| |
Power rated (AES) |
HF & MF:2000W ,LF:450W |
| |
Dispersion (HxV) |
80°*50° |
| |
Crossover |
320Hz |
| |
HF |
Polyester diaphragm driver/44mm voice coil/40W |
| |
MF |
8''/50mm voice coil/200W |
| |
LF |
15"/75mm voice coil/450W |
| |
SPL |
HF:122dB continuous 128dB peak |
| |
|
LF:123dB continuous 129dB peak |
| |

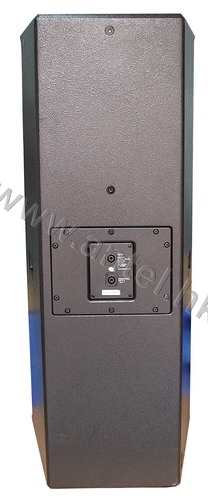

Connector |
2 SPEAKON NL4MP |
| |
Fittings |
7*M10 |
| |
Dimension (w*D*H) |
473*460*1117mm |
| |
Weight |
48kg |
