FEATURES:

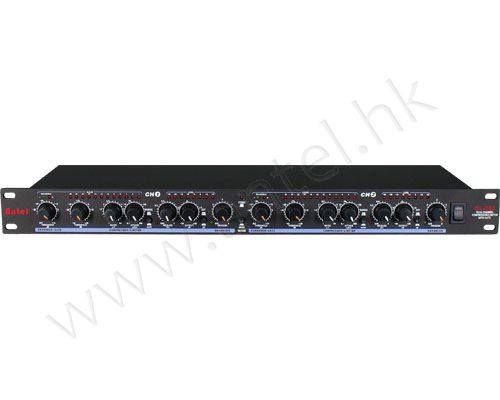

● 19” single rack space

● Contour switch removes unwanted low frequency information from detector circuit

● Hard knee compression modes

● Selectable auto or manual (variable Attack and Release) compression

● Program-adaptive expander/gates

● Great sounding dynamics control for any type of program material

● Separate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setup

● True stereo or dual mono operation

● Balanced inputs and outputs on 1/4" TRS and XLR connectors

● Internal shielded transformer

● Compact and durable all-steel chassis design

 SPECIFICATIONS:

● Input Connector:XLR and 1/4" TRS jack

● Input Type:Therefore filtered,servo-balanced input

● Input Impedance:Balanced 50kΩ,unbalanced 25k

● Input Max Level:+21dBu,Balanced or Unbalanced

● Output Impedance:Balanced 60Ω,unbalanced 30Ω

● Output Max Level:+21dBu,Balanced or Unbalanced

● Frequency Response:0.35Hz~90kHz,+0/-3dB

● Noise:<-96dBu,22Hz~22kHz,no weighting,unity gain

● THD+N:Typically<0.04%(1kHz)

● Compression Ratio:Variable;1:1 to Infinity:1

● Threshold Range:-40dBu ~ +20dBu

● Threshold Characteristic:Selectable OverEasy® or hard knee

● Attack Time:Scalable program-dependent;0.1ms to 200ms for 20dB gain reduction

● Release Time:Scalable program-dependent;125dB/Sec to 3dB/Sec

● Power Supply:AC220V 50Hz
