| Code: | ICSW-16P |  |

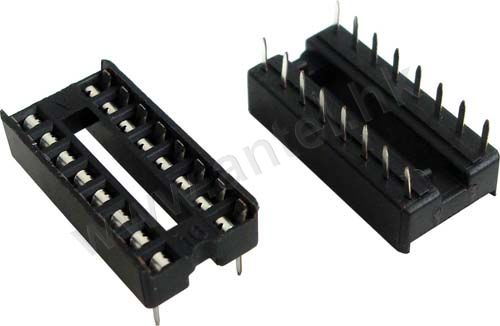

| Name: | IC socket, 16pin, pitch=2.54mm |
 |
Specifications:
| Art No. | Position | A (mm) | B (mm) | C (mm) | D (mm) |
| ICSW-6P | 6pin | 7.52 | 7.62 | 10.16 | 7.62 |
| ICSW-8P | 8pin | 10.16 | 7.62 | 10.16 | 7.62 |
| ICSW-14P | 14pin | 17.78 | 15.24 | 10.16 | 7.62 |
| ICSW-16P | 16pin | 20.32 | 17.78 | 10.16 | 7.62 |
| ICSW-18P | 18pin | 22.86 | 20.32 | 10.16 | 7.62 |
| ICSW-20P | 20pin | 25.40 | 22.86 | 10.16 | 7.62 |
| ICSW-24P-01 | 24pin | 30.48 | 27.94 | 10.16 | 7.62 |
| ICSW-24P-02 | 24pin | 30.48 | 27.94 | 17.78 | 15.24 |
| ICSW-28P-01 | 28pin | 35.56 | 33.02 | 10.16 | 7.62 |
| ICSW-28P-02 | 28pin | 35.56 | 33.02 | 17.78 | 15.24 |
| ICSW-32P | 32pin | 40.54 | 38.10 | 17.68 | 15.24 |
| ICSW-40P | 40pin | 50.80 | 48.26 | 17.78 | 15.24 |
| ICSW-42P | 42pin | 53.21 | 50.80 | 17.68 | 15.24 |
