| Code: | DAC10-310 |  |

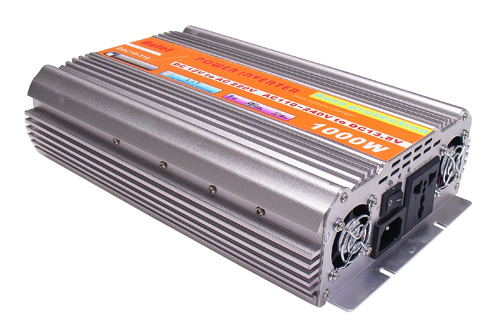

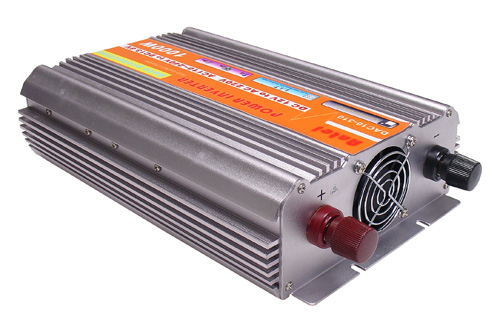

| Name: | Inverter |
 |
Features:
| • With battery charger,full 1000W |
| • Used on car,boat,solar energy/wind energy generator, mobile office,emergency assistance |
| • Highly efficient conversion,fast start-up |
| • High load adaptability and stability |
| • Over current and short circuit protection |
| • Built-in fuse,safe and reliable |
| • Low voltage protection & over load protection |
Specifications:
| Rated Power............................................,,,,,,,,................1000VA |
| Max Power.............................................,,,,,,,,,,,,................2000VA |
| Input Voltage..............................................,,,,,,,,..,,............DC12V |
| Low Voltage Range.....................................,,,,,,,...............≤10.5V |
| High Voltage Range....................................................>15V |
| Output Voltage.........................................................AC220V±10% |
| Output Frequency...................................................50Hz±3% |
| Input voltage(charge).............................................AC110~240V |
| Output voltage(charge)..........................................13.8V±10% |
| Output current(charge)............................................6~7A |
| Dimension(mm)......................................................263*190*70 |
| Weight(kg)…………………..................................................2.2 |
