| Code: | DAC30-310 |  |

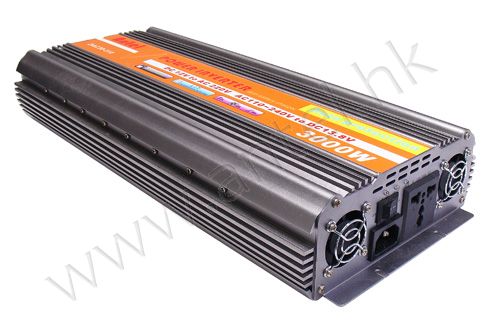

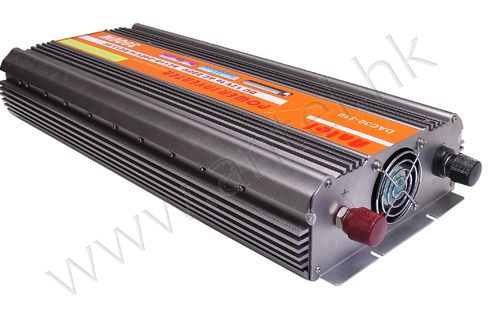

| Name: | Inverter |
 |
Features:
| • With battery charger,full 3000W |
| • Used on car,boat,solar energy/wind energy generator, mobile office,emergency assistance |
| • Highly efficient conversion,fast start-up |
| • High load adaptability and stability |
| • Over current and short circuit protection |
| • Built-in fuse,safe and reliable |
| • Low voltage protection & over load protection |
Specifications:
| Rated Power..............................................3000VA |
| Max Power..................................................6000VA |
| Input Voltage................................................DC12V |
| Low Voltage Range...................................≤10.5V |
| High Voltage Range......................................>15V |
| Output Voltage................................AC220V±10% |
| Output Frequency....................................50Hz±3% |
| Input voltage(charge).......................AC110~240V |
| Output voltage(charge)........................13.8V±10% |
| Output current(charge)....................................6~7A |
| Dimension(mm)...................................410*190*70 |
| Weight(kg)………………….………………..…4.1 |
