| Code: | LED-CON72W |  |
| Name: | Controller of LED strip lamp |
 |
Control Method:

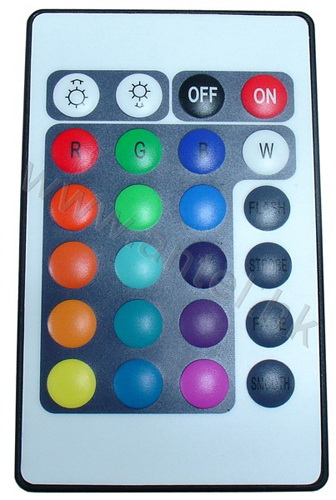

Adopt IR remote control to control the LED controller, 24 buttons, memory of functions, the function of each button as the table below:
| Brightness + (8 in all) | Brightness - (8 in all) | OFF | ON |
| Static red | Static green | Static blue | Static white |
| Static orange | Static pea green | Static dark blue | 7 color jumping change speed adjustable |
| Static dark yellow | Static cyan | Static brown | All fade out & fade in speed adjustable |
| Static yellow | Static light blue | Static pink | 7 color fade change speed adjustable |
| Static straw yellow | Static sky blue | Static purple | 3 bass color jumpy speed adjustable |
Notice: When switching to four dynamic modes (7 color jumping change, All fade out & fade in, 7 color fade change, 3 color jumping change ), the button of "brightness+''/"brightness-" means the speed of light change is fast/slow, there are 8 steps totally.

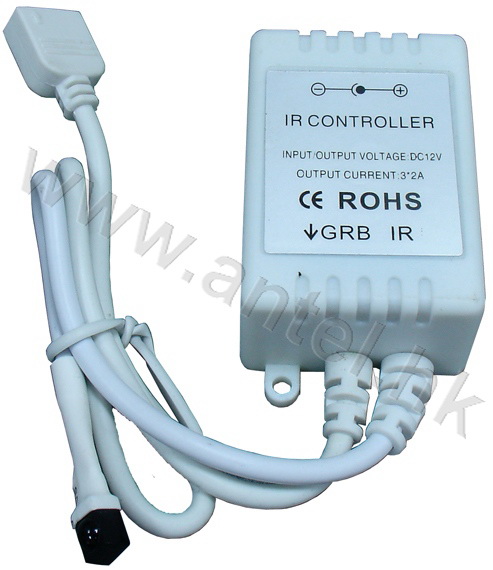

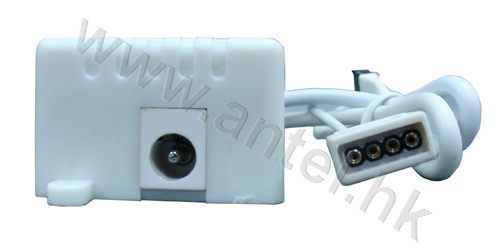

Specifications:
| Model | LED-CON72W |
| Input voltage | DC 12V |
| Max.output curent | 6A each color |
| Output | 3 loop output |
| Connecting mode | common anode |
| Max.output power | 72W |
| Dimension | 50*35*22mm |
