| Code: | RAM-12A |  |

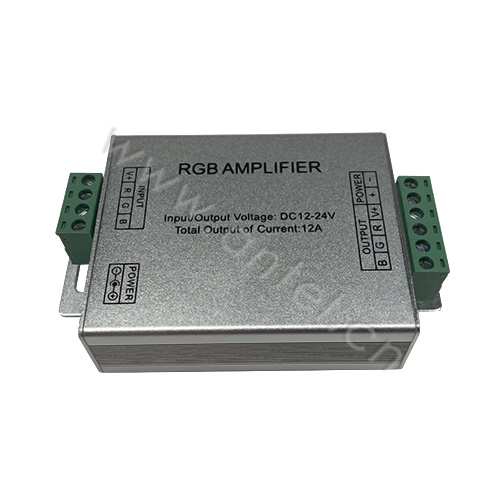

| Name: | 12A RGB LED Amplifier |
 |
Features
1. RGB module and light bar controller.
2. Signal amplification controlled by the optical control principle.
3. Display mode is same as the main controller's display mode.

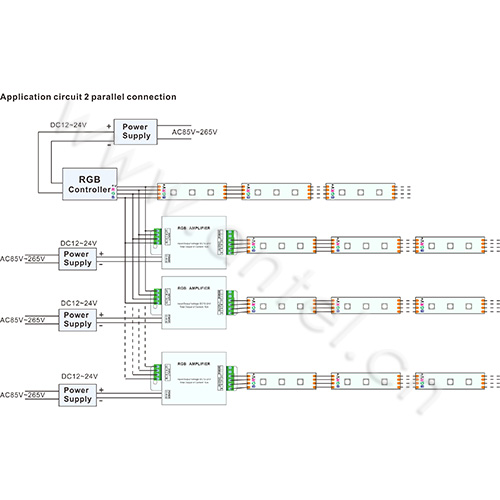

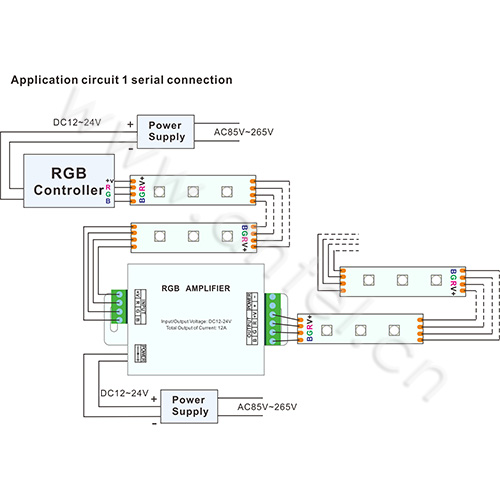

4. Unlimited number of cascading to achieve synchronous display.
Application
This amplifier is widely used for building lighting, KTV, Bar,
LED colorful light bar, LED ad perforated light, LED module, etc.
Specifications
| Model | RAM-12A |
| Input voltage range(V) | 12~24 |
| Output type | 3 loops |
| Connection type | common anode |
| Output power(W) | 12V ≤144; 24V ≤288 |
| Output current(A) | 12 |
| Working temperature(℃) | -10~60 |
| Dimension(mm) | 104*63*23 |
| Weight(g) | 90 |
