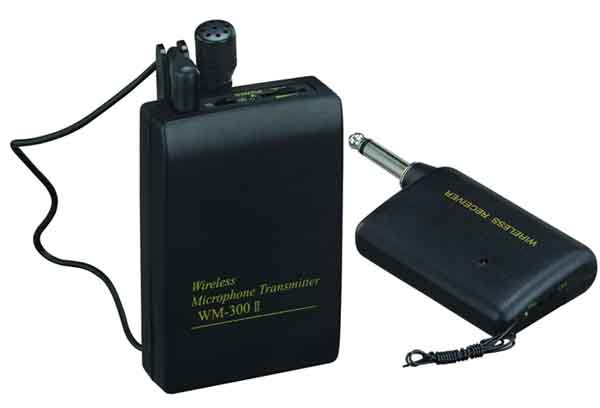

| Code: | WM-300II |  |
| Name: |
|
| ||
|
WM-300II | ||
| Receiver |
System |
Transmitter |
|
Sensitivity (S/N=30dB): <2μV Image Rejection: >40dB De-Emphasis: 50μS Audio Output Impedance: 600Ω±3% Audio Output Level: 0-0.3V Power Supply: AA1.5V Batt Current Consumption: ≤40mA Dimensions: 10*40*16mm Weight: Appr.37g(No Batt.) |
Audio Frequency Response: 80-10000Hz Dynamic Range: ≥60dB System Distortion: ≤1% Signal-to-Noise Ratio: ≥60dB Operating Range: Appr.25M Operating Temperature Range: 5℃-45℃ Carrier Frequency Range: 110-130MHz |
Frequency Stability: ±0.005% RF Output Power: ≤10mW Spurious Rejection: >40dB Modulation Mode: FM Max Deviation Range: ±75KHz Microphone Mode: Electric Condenser Pre-Emphasis: 50μS Power Supply: 9V Batt Current Consumption: <40mA Dimensions: 90*59*24mm Weight: Appr.60g(No Batt.) |
