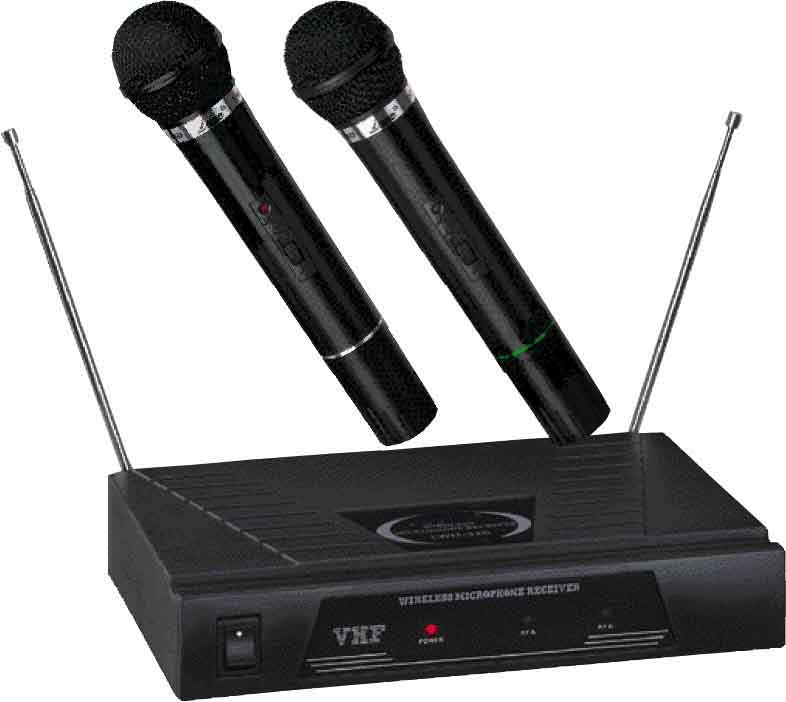

Overall System

Receiver

Transmitter

Audio Frequency Response : 80-12KHz

Dynamic range :≥80dB

System distortion:≤2%

S/N Ratio :≥80dB

Operating range : 50M

Operating temperature Range: 5℃-45℃

Carrier frequency: 180-280MHz

Sensitivity (S/N=30dB): < 8μ V

Image rejection: >50dB

De-Emphasis: 50μS

Audio Output Impedance: 600 Ω

Power Supply: AC 220W

Current consumption: <50mA

Dimensions: 210*145*44mm

Weight: Appr. 398g

Frequency stability: ± 0.005%

RF Output power: ≤30mW

Spurious rejection: > 40dB

Modulation mode: FM

Max deviation range: ± 50KHz

Microphone mode: Dynamic

De-Emphasis: 50μS

Power supply: 9V

Current Consumption: <35mA

Dimensions: 37*250mm

Weight:. 190g
