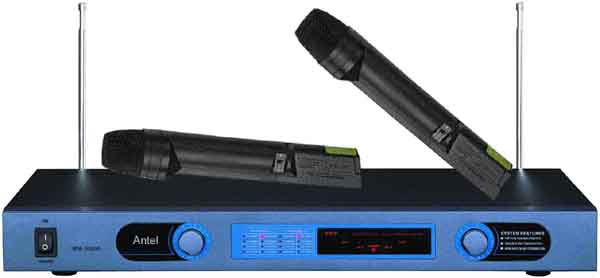

Overall System

Receiver

Transmitter

Audio Frequency Response : 50-15KHz

Dynamic range :≥90dB

System distortion:≤0.5%

S/N Ratio :≥90dB

Operating range : 80M

Operating temperature Range: -10℃-55℃

Carrier frequency: 180-270MHz

Sensitivity (S/N=30dB): < 2μ V

Image rejection: >50dB

De-Emphasis: 50μS

Audio Output Impedance: 600 Ω ± 10%

Power Supply: 0-0.5V

Power supply: AC 110V-220V

Current consumption: 5.5W

Dimensions: 423*220*58mm

Weight: Appr. 2240g

Frequency stability: ±0.005%

RF Output power: ≤20mW

Spurious rejection: > 50dB

Modulation mode: FM

Max deviation range: ± 25KHz

Microphone mode: Dynamic

De-Emphasis: 50μS

Power supply: 9V

Current Consumption: <35mA

Dimensions: 53(D)*250(L)mm

Weight:.235g
