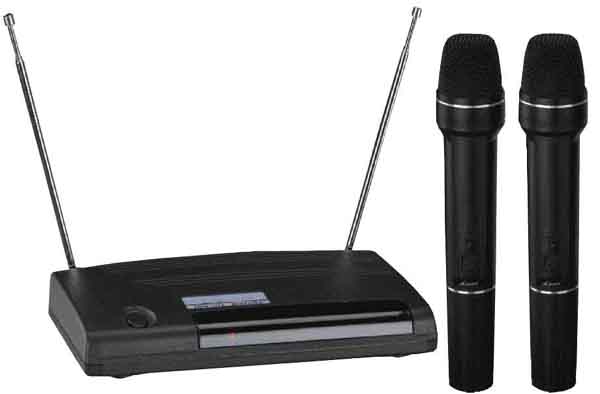

Overall System

Receiver

Transmitter

Audio Frequency Response : 80-12KHz

Dynamic range :≥90dB

System distortion:≤1%

S/N Ratio :≥90dB

Operating range : 50M

Operating temperature Range: 5℃-45℃

Carrier frequency: 180-280MHz

Sensitivity (S/N=30dB): < 2μ V

Image rejection: >40dB

De-Emphasis: 50μS

Audio Output Impedance: 600 Ω

Audio Output level: 0-0.5V

Power supply: DC 9V

Dimensions: 205*140*40mm

Weight: Appr. 320g

Frequency stability: ±0.005%

RF Output power: ≤10mW

Spurious rejection: >40dB

Modulation mode: FM

Max deviation range: ± 25KHz

Microphone mode: Dynamic

De-Emphasis: 50μS

Power supply: 9V

Current Consumption: <30mA

Dimensions: 45(D)*245(L)mm

Weight:.220g
