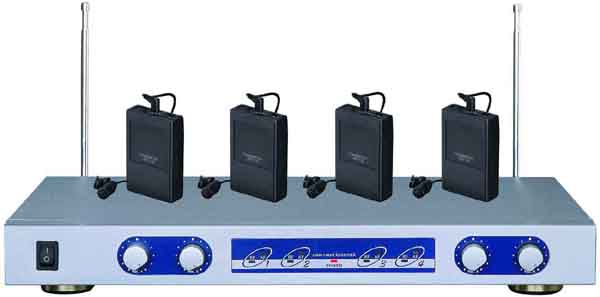

Overall System

Receiver

Transmitter

Audio Frequency Response : 80-12KHz

Dynamic range :≥60dB

System distortion:≤1%

S/N Ratio :≥60dB

Operating range : 50M

Operating temperature Range: 5℃-45℃

Carrier frequency: 150-280MHz

Sensitivity (S/N=30dB): < 2μ V

Image rejection: >40dB

De-Emphasis: 50μS

Audio Output Impedance: 600 Ω

Audio Output level:0-0.5V

Power Supply: AC220V-240V 50/60Hz

Current consumption: 2W

Dimensions: 420*265*55mm

Weight: Appr. 1540g

Frequency stability: ±0.005%

RF Output power: ≤10mW

Spurious rejection: >40dB

Modulation mode: FM

Max deviation range: ± 75KHz

Microphone mode: Dynamic

De-Emphasis: 50μS

Power supply: 9V

Current Consumption: <30mA

Dimensions: 90*60*25mm

Weight:.65g
