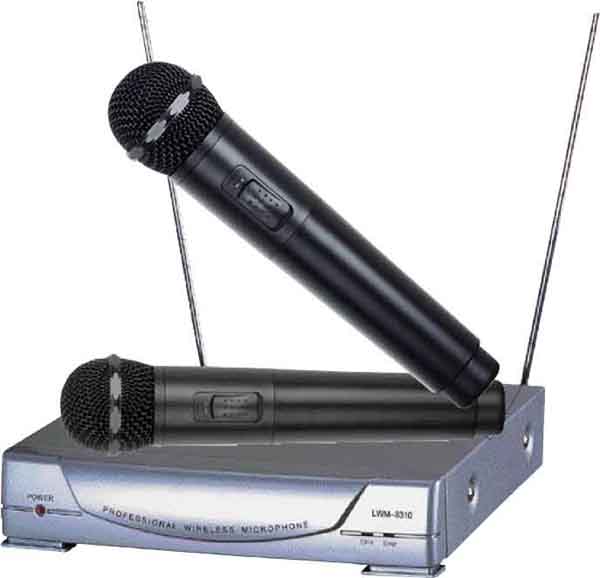

Overall System

Receiver

Transmitter

Audio Frequency Response : 50-16KHz

Dynamic range :>100dB

System distortion:≤0.8%

Operating range : 60M

Operating temperature Range: -10℃-55℃

Carrier Frequency range 210-280MHz

Frequency stability: ±0.005%

Sensitivity (S/N=30dB): < 3μ V

Image rejection: >80dB

Spurious rejection: >80dB

Audio Output : Balance 0-500mV

Power Supply: External power

Input voltage: AC 220V/50Hz

Output voltage: DC 15V 500mA

Frequency stability: ±0.005%

Modulation mode: FM

Deviation range: 15KHz-30KHz

Output power: <30mV

Spurious emission: >50dB

Battery: 1.5V x 2
