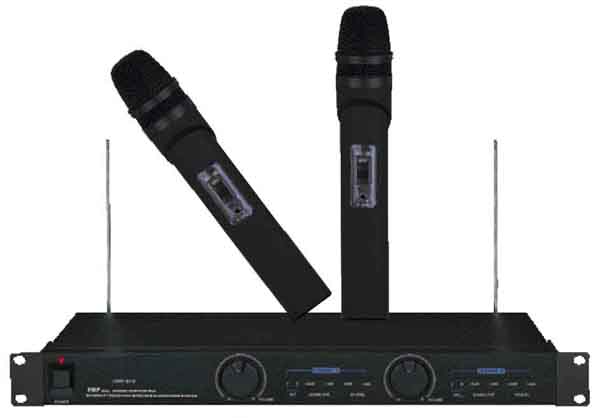

Overall System

Receiver

Transmitter

Audio Frequency Response : 50-16KHz

Dynamic range :≥100dB

System distortion:≤0.5%

S/N Ratio :≥100dB

Operating range : 100M

Operating temperature Range: -10℃-55℃

Carrier frequency: 220-280MHz

Receiving system: Diversity receiver

Sensitivity (S/N=30dB): <4μ V

Image rejection: >50dB

De-Emphasis: 50μS

Audio Output Impedance: 600 Ω

Audio Output level:0-0.3V

Power Supply: AC 220V

Current consumption: 4.5W

Dimensions: 423*220*58mm

Weight: Appr. 2500g

Frequency stability: ±0.002%

RF Output power : ≤30mW

Spurious rejection: >50dB

Modulation mode: FM

Max deviation range: ± 35KHz

Microphone mode: Dynamic

De-Emphasis: 50μS

Power supply: 9V

Current Consumption: ≤70mA

Dimensions:53(D)*250(L)mm

Weight:.235g
