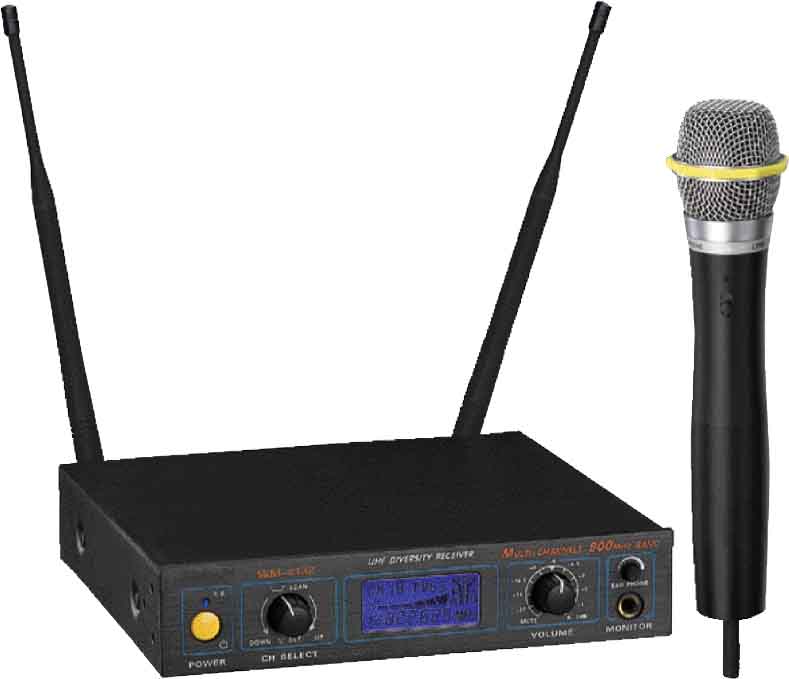

Overall System

Receiver

Transmitter

Audio Frequency Response : 50-14000Hz

Dynamic range :≥90dB

System distortion:≤1%

S/N Ratio :≥90dB

Operating range : 100M

Operating temperature Range: -5℃-45℃

Carrier frequency: 700-900MHz

Receiving system: Diversity receiver

Sensitivity (S/N=30dB): 2μV

Image rejection: >60dB

De-Emphasis: 50μS

Audio Output Impedance: 600 Ω

Audio Output level:0-0.5V

Power Supply: DC12 V

Current consumption: <300mA

Dimensions: 210*180*44mm

Weight: Appr. 2050g

Frequency stability: ±0.005%

RF Output power : ≤30mW

Spurious rejection: >40dB

Modulation mode: FM

Max deviation range: ± 45KHz

Microphone mode: Dynamic

De-Emphasis: 50μS

Power supply: 9VBatt

Current Consumption: <40mA

Dimensions:45(D)*245(L)mm

Weight:. 220g
