| Code: | WM-5638B |  |
| Name: |

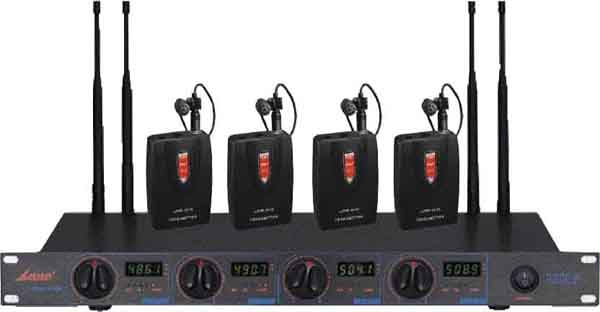

WM-5638B
|
Overall System |
Receiver |
|
Audio Frequency Response : 80-12000Hz Dynamic range :≥80dB System distortion:≤1% S/N Ratio :≥80dB Operating range : 80M Operating temperature Range: -5℃-45℃ Carrier frequency: 480-550MHz Receiving system : Diversity receiver
|
Sensitivity (S/N=30dB): ≤4 μV Image rejection: >60dB De-Emphasis: 50μS Audio Output Impedance: 600Ω Audio Output level: 1.1V Power Supply: AC 220V-240V 50/60H Current consumption: <300mA Dimensions: 480*220*45mm Weight: Appr. 2700g |
| Handheld Transmitter | Body-pack Transmitter |
|
Frequency stability: ±0.001% RF Output power : ≤30mW Spurious rejection: >50dB Modulation mode: FM Max deviation range: ±45KHz Microphone mode: Dynamic Pre-emphasis: 50μS Power supply: 1.5V Batt Current Consumption: ≤40mA Dimensions: 53(D)*270(L)mm Weight:. 250g |
Frequency stability: ±0.001% RF Output power : ≤30mW Spurious rejection: >50dB Modulation mode: FM Max deviation range: ±45KHz Microphone mode: Condenser Pre-emphasis: 50μS Power supply: 9V Batt Current Consumption: ≤40mA Dimensions: 95 x 60 x 20mm Weight:. 90g |
