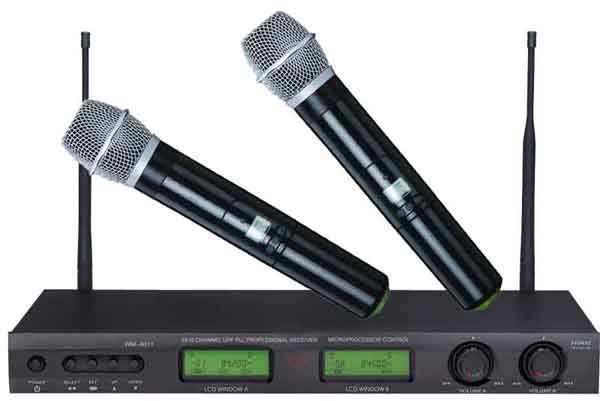

Overall System

Receiver

Transmitter

Audio Frequency Response : 40Hz-15KHz

Dynamic range :≥90dB

System distortion:≤0.5%

S/N Ratio :≥90dB

Operating range : Appr.100M

Operating temperature Range: -10℃-55℃

Carrier frequency: 790-870MHz

Sensitivity (S/N=30dB): <2 μV

Image rejection: >50dB

De-Emphasis: 50μS

Audio Output Impedance: 600Ω ± 10%

Audio Output level: 0- ± 400mV

Power Supply: AC 100V-220V

Current consumption: <500mA

Dimensions: 423*240*58mm

Weight: Appr. 2300g

Frequency stability: ±0.005%

RF Output power : ≤30mW

Spurious rejection: >40dB

Modulation mode: FM, F3E

Max deviation range: ±50KHz

Microphone mode: Dynamic

Pre-emphasis: 50μS

Power supply: DC 1.5V Batt

Power Reduiremennts: DC 4.5V

Current Consumption: ≤80mA

Dimensions: 53(D)*250(L)mm

Weight:. 235g
