| Code: | ET-7020M23 |  |
| Name: | Motor for Juice blender, AC220~240V 50HZ; 14000rpm |
 |
ET-7020M23

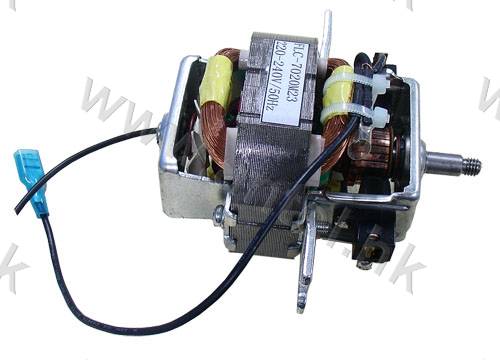

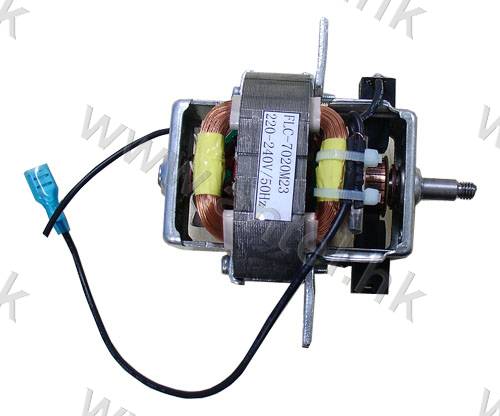

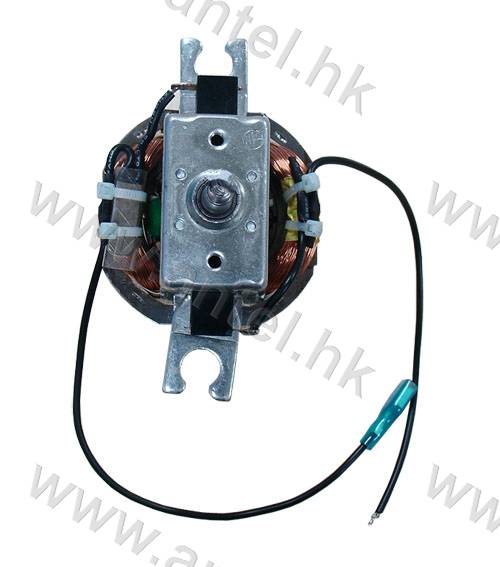

Motor for Juice blender,AC220-240V 50HZ;14000rpm, shalft=Φ7.14mm* Length 103mm/outer part=20.8mm; GW=568g,Gap of two ear hole=88mm,screw OD=Φ5.87mm;
SPECIFICATIONS
| 单相串励电机 AC UNIVERSAL MOTOR | 70系列 70SERIES |

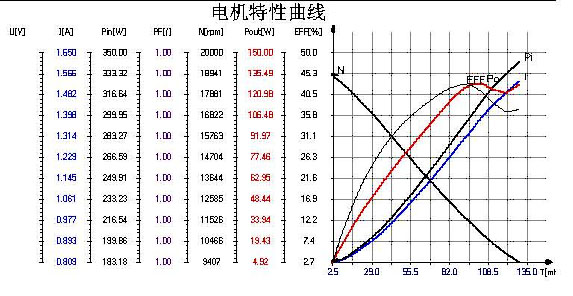

| ★特性曲线 CHARACTERISTICS | |
 |
|
| ★用途 APPLICATIONS | 果汁机、搅拌机、粉碎机；Juice Extractor, Blenders, Pulverizers |

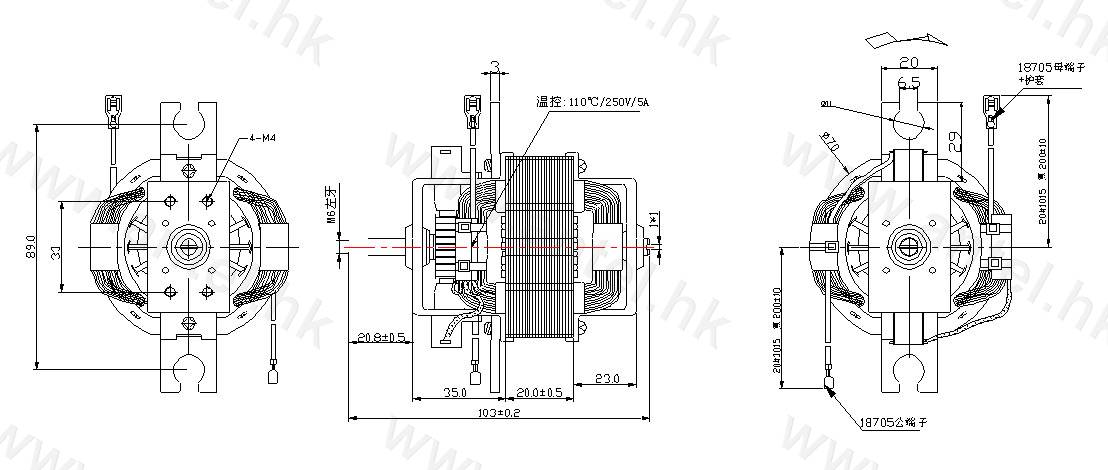

| ★外形图 OUTLINES (click to check↓) | |
 |
|
| MODEL | ELEC.SOURCE | FREE LOAD | AT MAX. EFFICIENCY | |||||||
| VOLTAGE | FREQ. | SPEED | CUR. | OUTPUT | SPEED | TORQUE | CUR. | INPUT | OUTPUT | |
| V | Hz | RPM | A | WATT | RPM | mN.m | A | WATT | WATT | |
| ET-7020M23 | 230 | 50 | 24000 | 289.8 | 124.1 | 10845 | 103.9 | 1.392 | 311.3 | 128.76 |
| MODEL | AT MAX. POWER | ||||
| VOLTAGE | TORQUE | CUR. | INPUT | OUTPUT | |
| V | mN.m | A | WATT | WATT | |
| ET-7020M23 | 10845 | 103.9 | 1.392 | 311.3 | 128.76 |
