| Code: | ANT-FFC-1.0 |  |
| Name: |

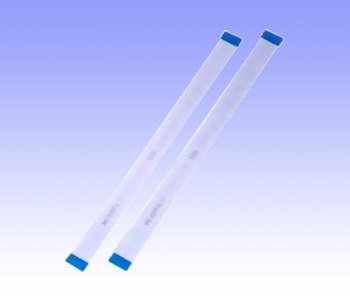

ANT-FFC-1.0

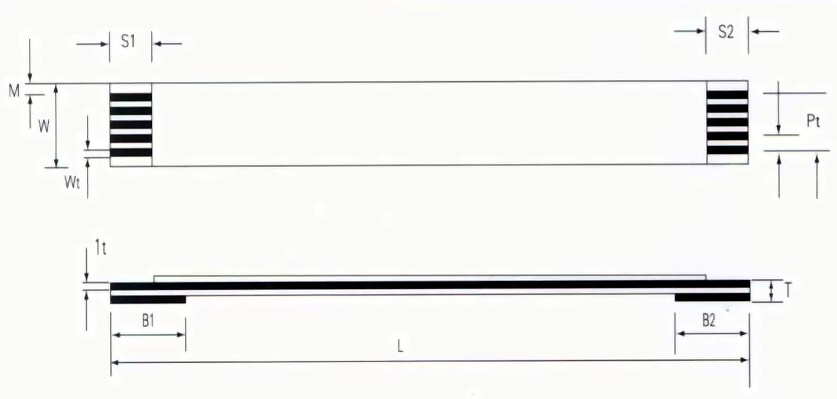

Item
Symbol
Unit
Guide line
Number of conductor thread
P
core
4～80
Tolerance of space between
/
mm
±0.08
Width of cable
W
mm
1.0*(p+1)±0.12
Space between centre of conductors on two edges
Pt
mm
1.0*(p-1)±0.1
Space between centre of conductors and the fringe
M
mm
1.0±0.1
Length of pluging and connection
S
mm
3±0.5 4±0.5 5±0.5 6±0.5
Thickness of pluging and connection
T
mm
0.3±0.05
Length of Enhanced board
B
mm
4±1 6±1 8±1 10±1 15±1
Length of cable
L
mm
L≤200±3 200
Thickness of conductors
Tt
mm
0.035±0.005 0.05±0.005 0.1±0.01
Width of conductors
Wt
mm
0.65±0.03 0.7±0.03
