| Code: | HB-6234B |  |
| Name: |
HB-6234B
|

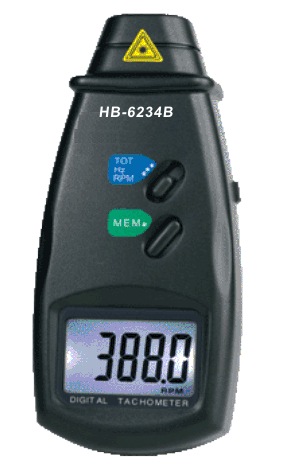

PHOTO TACHOMETER HB-6234B |
|
5 digits 18mm (0.6") White backlight LCD Accuracy: ±(0.05%+1 digit) Sampling Time: 0.5sec(over 120RPM) Range Select: Auto-Ranging Memory: Max. value, Min. value, Last value Can store 96s data Time Base: 6MHz Quartz crystal Detecting Distance: 50~500mm Power Consumption: Approx 55mA Measuring Range: 2.5~99,999RPM Resolution: 0.1RPM(2.5~999.9RPM) 1RPM(over 1,000RPM) Total Test Range: 1~99,999 Frequency Range: 1~1,666.6Hz Resolution: 0.01Hz Battery: 4x1.5V AA Size Battery or to external DC 6V Regulated power supply |
