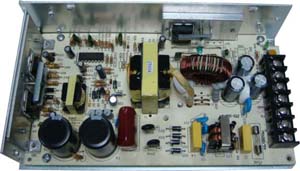

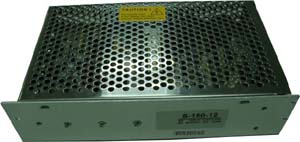

150W Single Output

Switching Power Supply

• Low cost, high reliability
• Built-in EMI filter
• Low output ripple & noise
• Protections: Over load/ Short circuit
• 1 years warranty
• CASE: 808; Size: 199*110*50

176－264VAC

47-63Hz

◆ AC inrush current：

Cold start, 35A/230VAC

◆ DC adjustment range：

±10% rated output voltage

◆ Line regulation (full load)：

≤0.5%

◆ Output over load protection：

110%-150% shut off, AC recycle to re-start

◆ Rise, hold up time：

50mS, 20mS at full load (typical)

◆ Withstand voltage：

I/P-O/P, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC, 1min

◆ Working temperature：

0-40℃@100%,  -10℃@80%, 50℃@60%load

◆ Storage temperature：

-20℃~+85℃, 20%~95%RH (non condensing)

◆ Safety standards：

Design refer to GB4943, UL60950-1, EN60950-1

◆ EMC standards：

Design refer to GB9254, EN55022 class A

◆ Cooling method：

Free air cooling convection

◆ Weight：

0.70Kgs/pcs

Product Model

DC Output

Load Regul.

R&N

Efficiency

SPW150-3.3

3.3V, 30A

1%

100mV

72%

SPW150-5

5V, 30A

1%

100mV

78%

SPW150-7.5

7.5V, 20A

1%

100mV

80%

SPW150-12

12V, 12.5A

0.5%

100mV

82%

SPW150-13.8

13.8V, 10.9A

0.5%

100mV

83%

SPW150-15

15V, 10A

0.5%

100mV

84%

SPW150-24

24V, 6.5A

0.5%

150mV

85%

SPW150-48

48V, 3.2A

0.5%

150mV

86%
