| Code: | 70W Single Output |  |
| Name: |
|
|

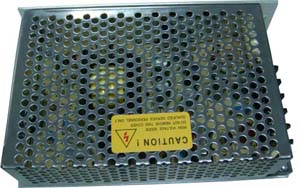

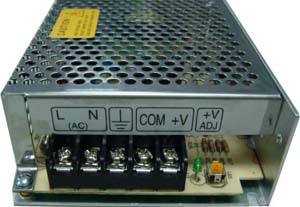

70W Single Output Switching Power Supply |
|
Low cost, high reliability
Built-in EMI filter
Low output ripple & noise
Protections: Over load/ Short circuit
1 years warranty
CASE: 806; Size: 159*98*42 |
|
| ◆ AC input voltage range： |
85－265VAC |
| ◆ Input frequency： |
47-63Hz |
|
◆ AC inrush current： |
Cold start, 40A/230VAC |
|
◆ DC adjustment range： |
±5% |
|
◆ Line regulation (full load)： |
≤±0.5% |
|
◆ Output over load protection： |
110%-150% hiccup mode, auto-recovery |
| ◆ Setup time： | ≤1s @230VAC, ≤1.5s @115VAC |
|
◆ Rise, hold up time： |
50mS, 20mS (typical) |
|
◆ Withstand voltage： |
I/P-O/P, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC, 1min |
|
◆ Working temperature： |
0-40℃@100%, -10℃@80%, 50℃@60%load |
|
◆ Storage temperature： |
-20℃~+85℃, 20%~95%RH (non condensing) |
|
◆ Safety standards： |
Design refer to GB4943, UL60950, EN60950 |
|
◆ EMC standards： |
Design refer to GB9254, EN55022 class A |
|
◆ Cooling method： |
Free air cooling convection |
|
◆ Weight： |
0.15Kgs/pcs |
|
Product Model |
DC Output |
Load Regul. |
R&N |
Efficiency |
|
SPW70-12 |
12V, 6A |
±1% |
50mV |
80% |
|
SPW70-15 |
15V, 4.5A |
±1% |
50mV |
78% |
|
SPW70-24 |
24V, 3A |
±1% |
50mV |
80% |
|
SPW70-36 |
36V, 2A |
±1% |
50mV |
80% |
|
SPW70-48 |
48V, 1.5A |
±1% |
50mV |
80% |
