| Code: | 50W Single Output |  |
| Name: |
|
|

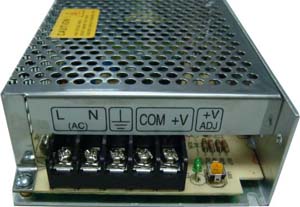

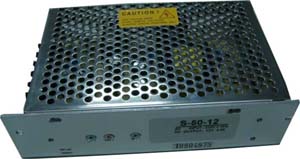

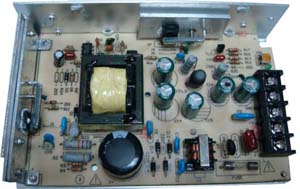

50W Single Output Switching Power Supply |
|
Low cost, high reliability
Built-in EMI filter
Low output ripple & noise
Protections: Over load/ Short circuit
1 years warranty
CASE: 806; Size: 159*98*42 |
|
|
|
|
| ◆ AC input voltage range： |
176－264VAC |
| ◆ Input frequency： |
47-63Hz |
|
◆ AC inrush current： |
Cold start, 40A/230VAC |
|
◆ DC adjustment range： |
±10% rated output voltage |
|
◆ Line regulation (full load)： |
≤0.5% |
|
◆ Output over load protection： |
110%-150% hiccup mode, auto-recovery |
|
◆ Rise, hold up time： |
50mS, 20mS at full load (typical) |
|
◆ Withstand voltage： |
I/P-O/P, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC, 1min |
|
◆ Working temperature： |
0-40℃@100%, -10℃@80%, 50℃@60%load |
|
◆ Storage temperature： |
-20℃~+85℃, 20%~95%RH (non condensing) |
|
◆ Safety standards： |
Design refer to GB4943, UL60950-1, EN60950-1 |
|
◆ EMC standards： |
Design refer to GB9254, EN55022 class A |
|
◆ Cooling method： |
Free air cooling convection |
|
◆ Weight： |
0.45Kgs/pcs |
|
Product Model |
DC Output |
Load Regul. |
R&N |
Efficiency |
|
SPW50-3.3 |
3.3V, 10A |
1% |
100mV |
69% |
|
SPW50-5 |
5V,10A |
1% |
100mV |
72% |
|
SPW50-7.5 |
7.5V, 6.7A |
1% |
100mV |
74% |
|
SPW50-12 |
12V, 4.2A |
0.5% |
100mV |
77% |
|
SPW50-13.8 |
13.8V, 3.6A |
0.5% |
100mV |
77% |
|
SPW50-15 |
15V, 3.4A |
0.5% |
100mV |
78% |
|
SPW50-24 |
24V, 2.1A |
0.5% |
150mV |
80% |
|
SPW50-48 |
48V, 1A |
0.5% |
150mV |
82% |
