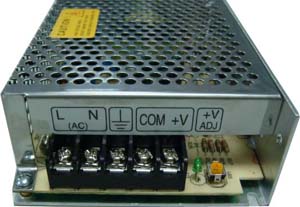

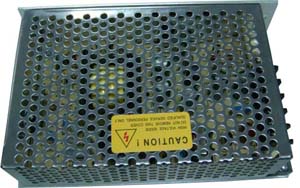

30W Single Output

Switching Power Supply

85－264VAC

47-63Hz

◆ AC inrush current：

Cold start, 30A/230VAC

◆ DC adjustment range：

±10% rated output voltage

◆ Line regulation (full load)：

≤±0.5%

◆ Output over load protection：

110%-150% hiccup mode, auto-recovery

◆ Rise, hold up time：

50mS, 20mS at full load (typical)

◆ Withstand voltage：

I/P-O/P, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC, 1min

◆ Working temperature：

-10-50℃@100%, 60℃@60%load

◆ Storage temperature：

-20℃~+85℃, 20%~95%RH (non condensing)

◆ Safety standards：

Design refer to GB4943, UL60950-1, EN60950-1

◆ EMC standards：

Design refer to GB9254, EN55022 class B

◆ Cooling method：

Free air cooling convection

◆ Weight：

0.28Kgs/pcs
