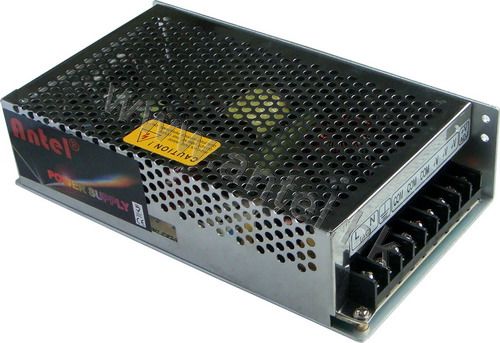

250W Single Output

Switching Power Supply

• Low cost, high reliability
• Built-in EMI filter
• Low output ripple & noise
• Protections: Over load/ Short circuit
• 1 years warranty
• CASE: 808; Size: 199*110*50

176－264VAC

47-63Hz

◆ AC inrush current：

 Cold start, 40A/230VAC

◆ DC adjustment range：

±5%

◆ Line regulation (full load)：

≤±0.5%

◆ Output over load protection：

110%-150% hiccup mode, auto-recovery

◆ Setup time :

≤0.2s@230VAC

◆ Rise, hold up time：

50mS, 20mS (typical)

◆ Withstand voltage：

I/P-O/P, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC, 1min

◆ Working temperature：

0-40℃@100%,  -10℃@80%, 50℃@60%load

◆ Storage temperature：

-20℃~+85℃, 20%~95%RH (non condensing)

◆ Safety standards：

Design refer to GB4943, UL60950, EN60950

◆ EMC standards：

Design refer to GB9254, EN55022 class A

◆ Cooling method：

Free air cooling convection

◆ Weight：

0.15Kgs/pcs
