| Code: | CMA31-DC12V-A |  |

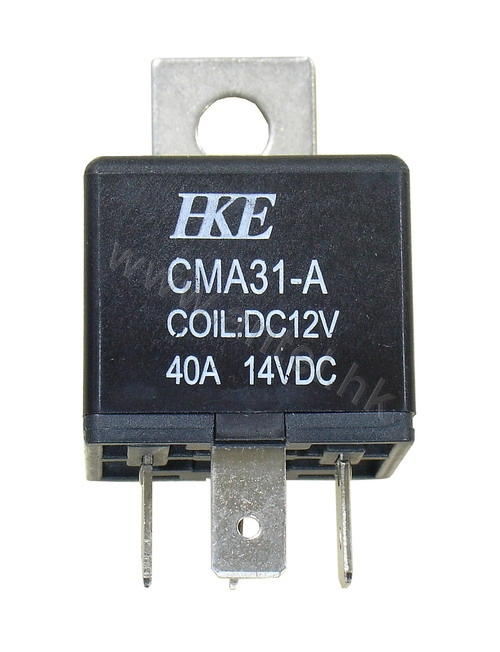

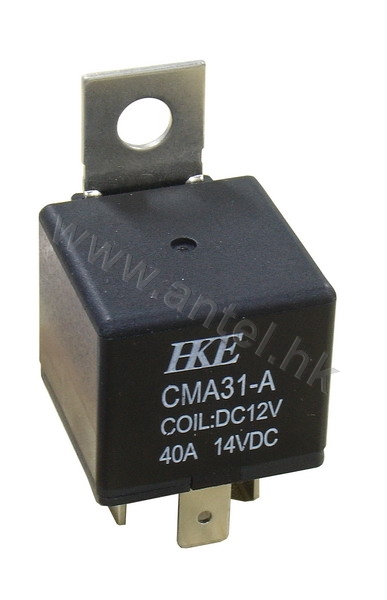

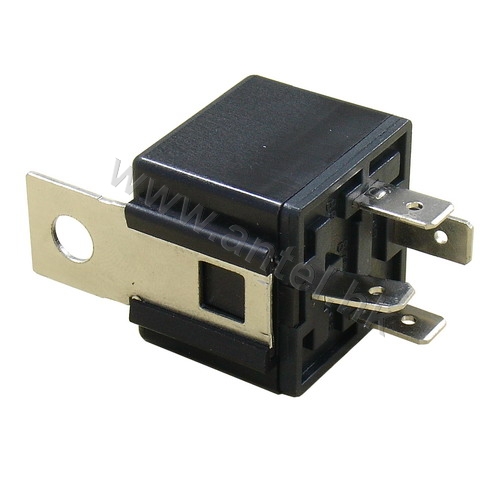

| Name: | CMA31-A 4pin DC12V 40A 14VDC |
 |
Specifications:
| MODEL: | CMA31-DC12V-A |
| COIL DATA | |
| Nominal Voltage | 12V DC |
| Coil Restistance(Ω+/-10%) | 90 |
| Operate Voltage(≤VDC) | 8.4 |
| Release Voltage(≥VDC) | 1.2 |
| Coil Power(Mw) | 1600 |
| CONTACT DATA | |
| Contact Form | A-1 form A |
| Contact Material | Ag Alloy |
| Contact Rating | 30A 14VDC Resistive (1 Form C) |
| Max.Switching Voltage | 75VDC |
| Max.Switching Current | 40A |
| Max.Switching Power | 560W |
| Max.Load Current(14VDC Load Voltage) | |
| Contact Rating Current | 40A |
| Max.Make Current | 100A |
| Max.Break Current | 40A |
| Contact Resistance | ≤100m (6VDC 1A) |
| Life | |
| Electrical | 100,000 operations |
| Mechanical | 10,000,000 operations |
| GENERAL DATA | |
| Insulation Resistance | Min.100M 500VDC |
| Dielectric Strength | 500VAC,1min between open contacts |
| 500VAC,1min between coil and contacts | |
| Operate Time | Max.10ms |
| Release Time | Max.10ms |
| Operate Temperature | -40 ~ +85 C |
| Shock Resistance | |
| Endurance | 1,000m/s2 |
| Misoperation | 100m/s2 |
| Vibration Resistance | |
| Endurance | 10 -55Hz ,double amplitude 1.5mm |
| Misoperation | 10 -55Hz ,double amplitude 1.5mm |
| Weight | Approximately 35.0g |
