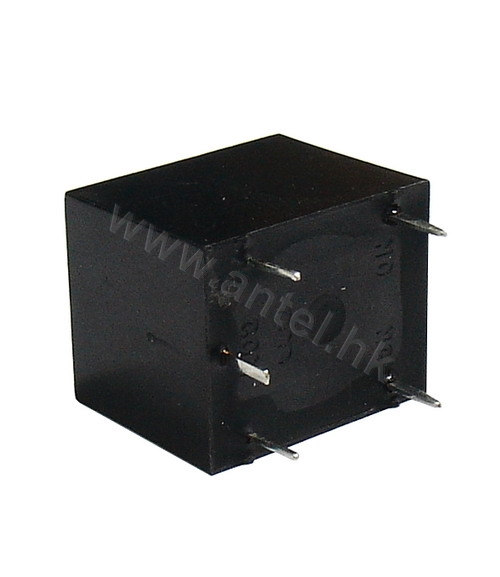

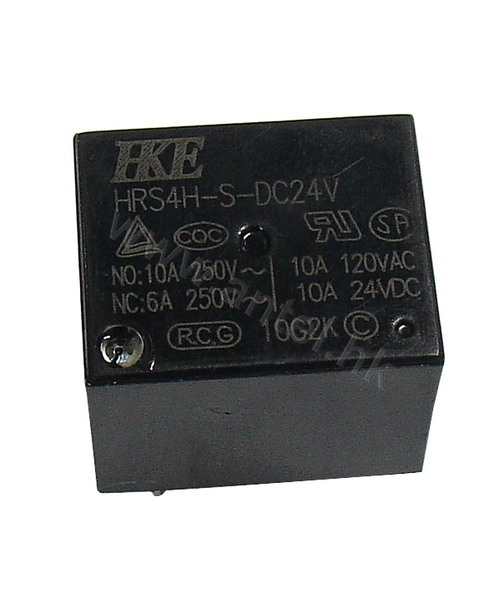

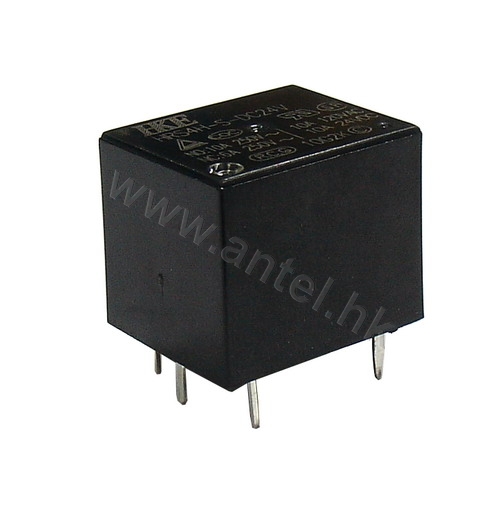

| Code: | HRS4H-S-DC24V |  |
| Name: | 5pin/DC24V R=2K black |
 |
Specifications:
| MODEL: | HRS4H-S-DC24V |
| COIL DATA | |
| Nominal Voltage | 24V DC |
| Coil Restistance(Ω+/-10%) | 1600 |
| Operate Voltage(≤VDC) | 16.8 |
| Release Voltage(≥VDC) | 2.4 |
| Coil Power(Mw) | 360 |
| CONTACT DATA | |
| Contact Form | C-1 form C |
| Contact Material | Ag Alloy |
| Contact Rating | 1C:10A 120VC/24VDC,10A/ 6A 250VAC |
| Max.Switching Voltage | 250AC/24VDC |
| Max.Switching Current | 15A |
| Max.Switching Power | 360W |
| Min.Switching Load | 5VDC,100mA |
| Contact Resistance | ≤100m (6VDC 1A) |
| Life | |
| Electrical | 100,000 operations |
| Mechanical | 10,000,000 operations |
| GENERAL DATA | |
| Insulation Resistance | Min.100M Ω 500VDC |
| Dielectric Strength | 750VAC,1min between open contacts |
| 1500VAC,1min between coil and contacts | |
| Operate Time | Max.10ms |
| Release Time | Max.5ms |
| Operate Temperature | -30 ~ +85°C |
| Shock Resistance | |
| Endurance | 1,000m/s2 |
| Misoperation | 100m/s2 |
| Vibration Resistance | |
| Endurance | 10 -55Hz ,double amplitude 1.5mm |
| Misoperation | 10 -55Hz ,double amplitude 1.5mm |
| Humidity | 35% 95%RH,+40°C |
| Weight | Approximately 10.0g |
