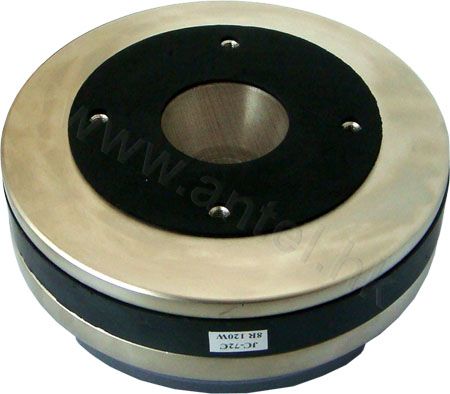

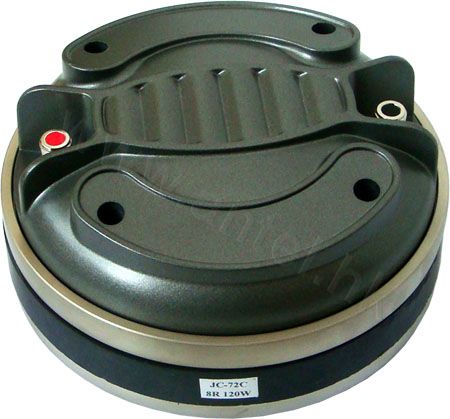

| Code: | JC-72 |  |
| Name: | Driver unit |
 |
Specifications:
| JC-72 |
| Throat Diameter : 2in(50mm) |
| Mounting Type : Bolt-on |
| Norminal Impedance : 8 ohm |
| Sensitivity(1W/1M) : 112db |
| Power Capacity :120watts RMS |
| Frequency Range : 500Hz-18KHz |
| Diaphragm Material : Titanium |
| Voice Coil Diameter : 2.84in(72.2mm) |
| Coil Material : Round & Ribbon Aluminium Wire |
| Magnet : Strontium Ferrite |
| Size:180mm(7.09in)*85mm(3.35in) |
| Net Weight :7.8kg |
