| Code: | JC-45S |  |

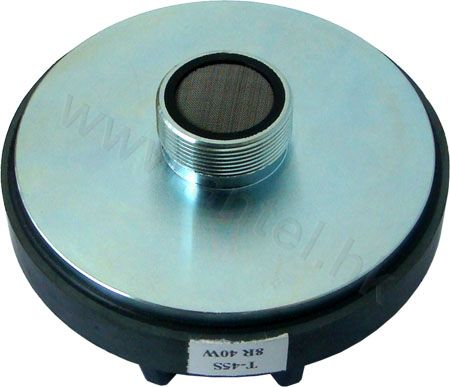

| Name: | Driver unit |
 |
Specifications:
| JC-45S |
| Throat Diameter : 1in(25mm) |
| Mounting Type : Screw on 1-3/8" |
| Norminal Impedance : 8 ohm |
| D.C.R esistance: 6.0 ohm |
| Power Capacity :40W(-24db/oct;pink noise) |
| Sensitivity(1W/1M) : 107db |
| Frequency Range : 1.2KHz-20KHz |
| Recommended Crossover: 2.0KHz or Higher |
| Standard of sound: 1KHz-20KHz(3V sweep) |
| Voice Coil Diameter : 1.75in(44.4mm) |
| Voice Coil Material : Round Aluminium Wire |
| Voice Coil Former: Kapton |
| Diaphragm Material : Titanium |
| Magnet Material : Strontium Ferrite(ceramic) |
