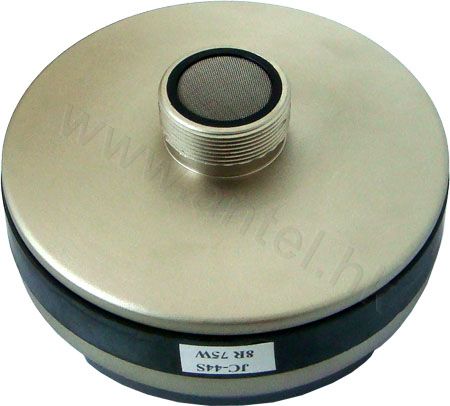

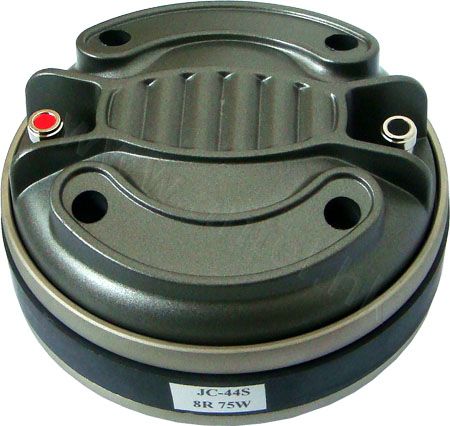

| Code: | JC-44S |  |
| Name: | Driver unit |
 |
Specifications:
| JC-44S |
| Throat Diameter : 1in(25mm) |
| Mounting Type : Screw on 1-3/8" |
| Norminal Impedance : 8 ohm |
| Sensitivity(1W/1M) : 109db |
| Power Capacity :75watts RMS |
| Frequency Range : 1.2KHz-21KHz |
| Diaphragm Material : Titanium |
| Voice Coil Diameter : 1.75in(44.4mm) |
| Coil Material : Round & Ribbon Aluminium Wire |
| Magnet : Strontium Ferrite |
| Size:120mm(4.72in)*77mm(3.03in) |
| Net Weight :2.5kg |
