| Code: | CT-445CS |  |

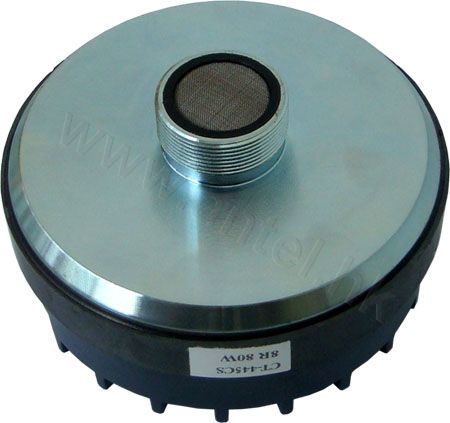

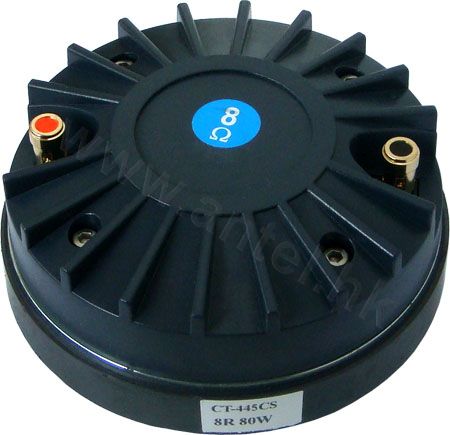

| Name: | Driver unit |
 |
Specifications:
| CT-445CS |
| Throat Diameter: 1 in (25mm) |
| Mounting Type: Screw on 1 3/8 ″ |
| Nominal Impedance: 8 Ohm |
| Power Capacity: 40Watts RMS |
| Sensitivity(1W/1M): 107dB |
| Frequency Range: 1.2KHz-20KHz |
| Diaphragm Material: Titanium |
| Voice Coil Diameter : 1.75 in(44.4mm) |
| Coil Material : Round&Ribbon Aluminium Wire |
| Magnet: Strontium Ferrite |
| Size : 115mm (4.53in) ×67.5mm (2.66in) |
| Net Weight: 1.57Kg |
