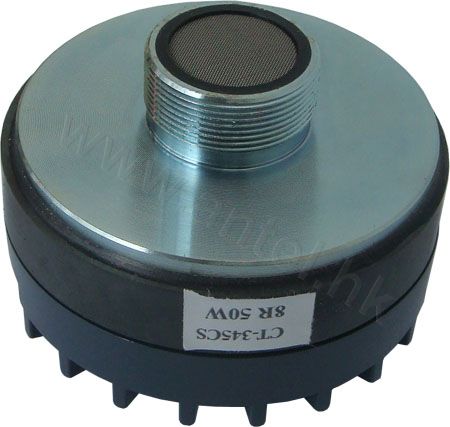

| Code: | CT-345CS |  |
| Name: | Driver unit |
 |
Specifications:
| CT-345CS |
| Throat Diameter : 1in(25mm) |
| Mounting Type : Screw on 1-3/8" |
| Norminal Impedance : 8 ohm |
| Sensitivity(1W/1M) : 106db |
| Power Capacity :30watts RMS |
| Frequency Range : 1.2KHz-20KHz |
| Diaphragm Material : Titanium |
| Voice Coil Diameter : 1.35in(34.4mm) |
| Coil Material : Round & Ribbon Aluminium Wire |
| Magnet : Strontium Ferrite |
| Size:90mm(3.54in)*62.5mm(2.46in) |
| Net Weight :0.97kg |
