| Code: | YD480-18B |  |

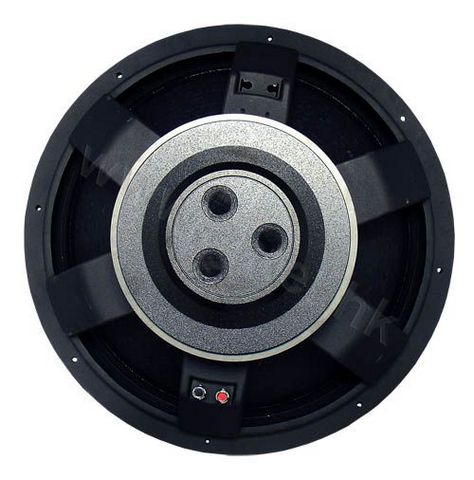

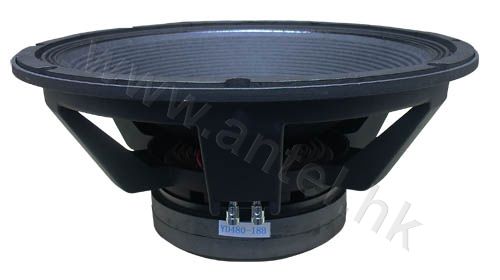

| Name: | 18'' subwoofer, Alu frame, 700W(RMS) |
 |
Specifications:
| Mode | YD480-18B |
| Rated Power(W) | 700 |
| Impedance(Ω) | 8 |
| Frequency Range(Hz) | 40~3500 |
| Sensitivity(dB) | 93 |
| Total Quality Factor(Qts) | 0.47 |
| Electrical Quality Factor(Qes) | 0.55 |
| Mechanical Quality Factor(Qms) | 3.43 |
| Voice Coil Diameter(Φmm) | 99.6 |
| Magnet Size(mm) | 220*20 & 220*20 |
| Speaker Size(Inch) | 18 |
| Dimension(Φ*H mm) | 475*220 |
