| Code: | SPW-DB158-17B to SPW-DB300-17B |  |

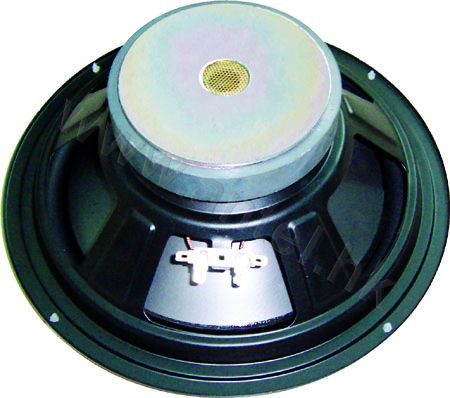

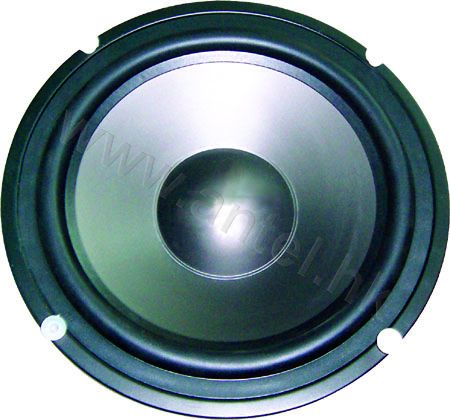

| Name: | woofer |
-17B.jpg) |
Specifications:
| SPW-DB158-17B to SPW-DB300-17B | PP Cone With Rubber Edge | ||||||
| Model | Size | Magnet | Voice Coil | Max Power (W) | Impedance | Freq | Sensitivity |
| SPW-DB158-17B | 6" | 80x40x12 (8.7oz) | 1" ASV | 60 | 4 or 8 ohm | 80-15kHz | 90 dB/w.m |
| SPW-DB165-17B | 6.5" | 80x40x15 (10oz) | 1" ASV | 80 | 4 or 8 ohm | 60-10kHz | 90 dB/w.m |
| SPW-DB200-17B | 8" | 100x45x18 (20oz) | 1" ASV | 100 | 4 or 8 ohm | 45-5kHz | 91 dB/w.m |
| SPW-DB250-17B | 10" | 120x60x20 (30oz) | 1.5" ASV | 200 | 4 or 8 ohm | 40-5kHz | 92 dB/w.m |
| SPW-DB300-17B | 12" | 140x60x20 (40oz) | 1.5" ASV | 250 | 4 or 8 ohm | 35-3kHz | 93 dB/w.m |
