| Code: | YD480-3A |  |

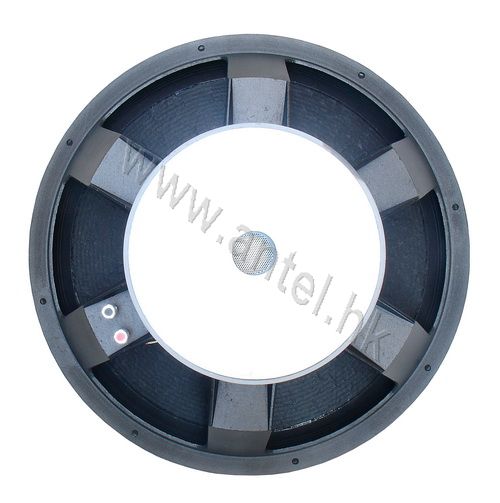

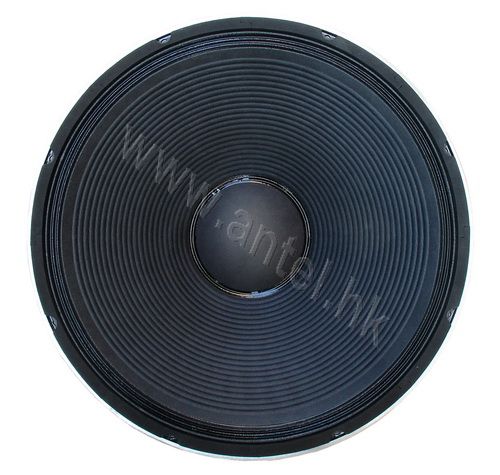

| Name: | 18'' subwoofer, Alu frame, 500W(RMS) |
 |
| Model | YD480-3A |
| Power rating (RMS) | 500w |
| Impedance (Ω) | 6.0Ω |
| Frequency range (Hz) | 35Hz~2500Hz |
| Sensitivity (1W/1M) | 89.2dB±3dB |
| Frame | Alu frame, black |
| Magnet (mm) | Φ220*110*25 Y30 |
| Voice coil (mm) | Φ102*99.6*H55mm |
| Weight | 11.40kgs |
| Size (mm) | Φ462*283 |
