| Code: | YD480-10 |  |

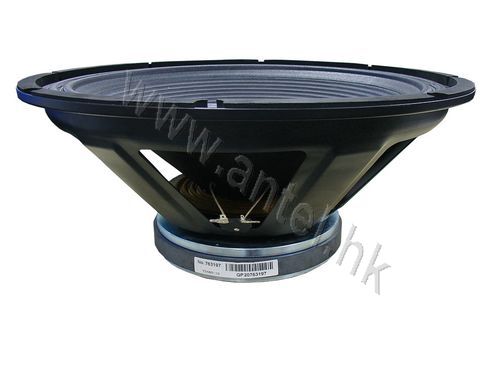

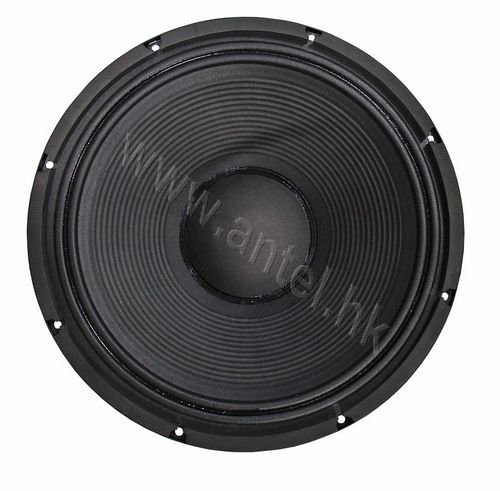

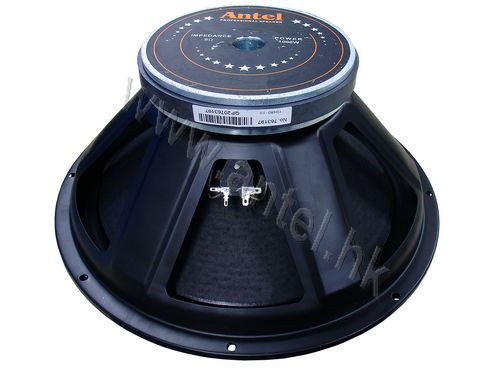

| Name: | 18'' subwoofer, Iron frame, 500W(RMS) |
 |
| Model | YD480-10 |
| Power rating (RMS) | 500W |
| Impedance (Ω) | 6.3Ω |
| Frequency range (Hz) | 35Hz~2500Hz |
| Sensitivity (1W/1M) | 85.6dB±3dB |
| Frame | Iron frame, black |
| Magnet (mm) | Φ220*110*20 Y30 |
| Voice coil (mm) | Φ102*99.6*H55mm |
| Weight | 8.2kgs |
| Size (mm) | Φ460*195 |
