No.	Part No.	Polarity	Pcm(W)	Ic(A)	Vcbo(V)	Vceo(V)	Vebo(V)	Hfe		Package
No.	Part No.	Polarity	Pcm(W)	Ic(A)	Vcbo(V)	Vceo(V)	Vebo(V)	min	max	Package

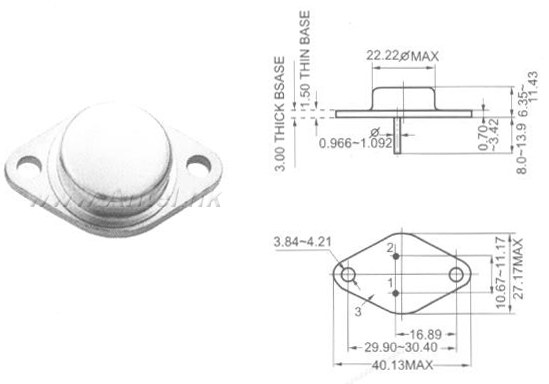

1	2SC1413	NPN	50	5.0	1500	600	6	8.0		TO-3
2	2SC1942	NPN	50	3.0	1500	600	7	8.0	30	TO-3
3	2SC2445	NPN	50	5.0	1500	700	6	8.0	40	TO-3PFM

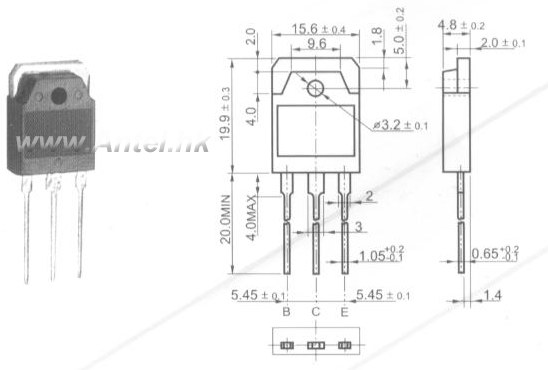

4	2SC4706	NPN	130	14.0	900	600	7	8.0	30	TO-3P(N)
5	2SC4745	NPN	50	6.0	1500	800	6	7.0	30	TO-3P(N)
6	2SC4927	NPN	60	8.0	1500	1500	6	8.0	30	TO-3P.FM
7	2SC5047	NPN		25.0	1600	800		15.0	25	TO-3P.FM
8	2SC5207A	NPN	60	10.0	1500	700	6	8.0	40	TO-3P.FM
9	2SC5250	NPN	60	8.0	1500	1500	6	8.0	30	TO-3P.FM
10	2SD820	NPN	50	5.0	1500	600	5	8.0	40	TO-3
11	2SD850	NPN	50	4.0	1500	700	5	8.0	30	TO-3
12	2SD869	NPN	50	3.5	1500	1500	6	8.0	30	TO-3
13	2SD870	NPN	50	5.0	1500	1500	5	8.0	30	TO-3
14	2SD871	NPN	50	6.0	1500	1500	5	8.0	30	TO-3
15	2SD951	NPN	50	4.0	1500	1500	5	8.0	30	TO-3
16	2SD1401	NPN	80	3.5	1500	800	5	8.0	30	TO-3P(N)
17	2SD1402	NPN	120	5.0	1500	800	7	8.0	30	TO-3P(N)
18	2SD1403	NPN	120	6.0	1500	800	7	8.0	30	TO-3P(N)
19	2SD1425	NPN	80	2.5	1500	1500	5	8.0	30	TO-3P(H)
20	2SD1426	NPN	80	3.5	1500	1500	5	8.0	30	TO-3P(H)
21	2SD1427	NPN	80	5.0	1500	1500	5	8.0	30	TO-3P(H)
22	2SD1428	NPN	80	6.0	1500	1500	6	8.0	30	TO-3P(H)
23	2SD1429	NPN	80	2.5	1500	600	5	8.0	30	TO-3P(H)
24	2SD1430	NPN	80	3.5	1500	600	5	8.0	30	TO-3P(H)
25	2SD1431	NPN	80	5.0	1500	600	5	8.0	30	TO-3P(H)
26	2SD1432	NPN	80	6.0	1500	600	6	8.0		TO-3P(H)
27	2SD1545	NPN	50	5.0	1500	600	5	8.0	40	TO-3P(H)(IS)
28	2SD1546	NPN	50	6.0	1500	600	5	8.0	40	TO-3P(H)(IS)
29	2SD1547	NPN	50	7.0	1500	600	5	8.0	40	TO-3P(H)(IS)
30	2SD1548	NPN	50	10.0	1500	600	5	8.0	40	TO-3P(H)(IS)
31	2SD1554	NPN	40	3.5	1500	1500	5	8.0	30	TO-3P(H)(IS)
32	2SD1555	NPN	50	5.0	1500	1500	5	8.0	30	TO-3P(H)(IS)
33	2SD1556	NPN	50	6.0	1500	1500	5	8.0	30	TO-3P(H)(IS)
34	2SD1650	NPN	50	3.5	1500	1500	6	8.0	30	TO-3PML
35	2SD1651	NPN	60	5.0	1500	1500	6	8.0	30	TO-3PML
36	2SD1652	NPN	60	6.0	1500	1500	6	8.0	30	TO-3PML
37	2SD1710	NPN	50	5.0	1500	700	6	8.0	40	TO-3PML
38	2SD1711	NPN	50	5.0	1500	800	6	8.0	40	TO-3PML
39	2SD1876	NPN	50	3.0	1500	1500	6	3.0		TO-3PML
40	2SD1877	NPN	50	4.0	1500	1500	6	3.5	10	TO-3PML
41	2SD1878	NPN	60	5.0	1500	1500	6	5.0	10	TO-3PML
42	2SD1879	NPN	60	6.0	1500	1500	6	5.0		TO-3PML
43	2SD1880	NPN	70	8.0	1500	1500	6	8.0	40	TO-3PML
44	2SD1881	NPN	70	10.0	1500	1500	6	8.0		TO-3PML
45	2SD1882	NPN	50	3.0	1500	800	6	3.0		TO-3PML
46	2SD1883	NPN	50	4.0	1500	800	6	3.5		TO-3PML
47	2SD1884	NPN	60	5.0	1500	800	6	5.0	10	TO-3PML
48	2SD1885	NPN	60	6.0	1500	800	6	5.0	10	TO-3PML
49	2SD1886	NPN	70	8.0	1500	800	6	8.0		TO-3PML
50	2SD1887	NPN	70	10.0	1500	700	6	8.0	40	TO-3PML
51	2SD1959	NPN	50	10.0	1400	700	6	8.0	30	TO-3PFM
52	BU205	NPN	10	2.5	1500	700	5	2.0	30	TO-3
53	BU208A	NPN	125	5.0	1500	700	7	2.5	30	TO-3
54	BU208D	NPN	125	5.0	1500	1500	7	2.5	30	TO-3
55	BU508A	NPN	125	8.0	1500	700	7	8.0	30	TO-3P(N)
56	BU508D	NPN	125	8.0	1500	1500	7	8.0	30	TO-3P(N)
57	BU2508AF	NPN	45	8.0	1500	700	6	8.0	40	TOP-3F
58	BU2508DF	NPN	45	8.0	1500	1500	6	8.0	40	TOP-3F
59	BU2520AF	NPN	45	10.0	1500	800	5	6.0	30	TOP-3F
60	BU2520DF	NPN	45	10.0	1500	1500	5	6.0	30	TOP-3F
61	BUV48A	NPN	150	15.0	1000		6	5.0		MT100
62	BUV48C	NPN	120	15.0	1200	700	6	5.0		MT100

Category: Transistor - TV Power
